Hello

testing it
I do not have to try the sensor, does it work in simulation.

Hello,

I have not tested on the hardware ... Normally it should work.

Cubitus

Hello You put a variable or constant with offset offset = 3 for example (+0,3°C) .temperature = .temperature + offset .temperature = .temperature AND 0x03ff .entier = .temperature / 10 ... OR .temperature = .temperature + 3 .temperature = .temperature AND 0x03ff .entier = .temperature / 10 ... :D

Hello

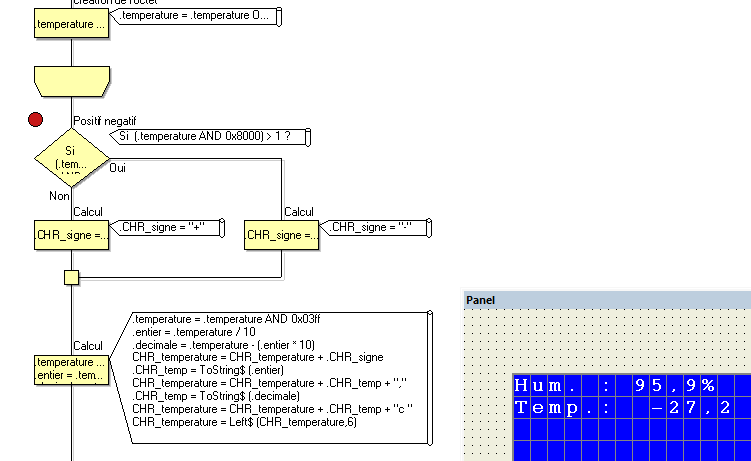

For the négative temp.

◎Special Instructions：
When the temperature is below 0 ℃, the highest position of the temperature data.
Example： -10.1 ℃ Expressed as 1 000 0000 0110 0101
Temp.：0000 0000 0110 0101 = 0065H(Hexadecimal)＝ 6×16 +5 = 101
=> Temp. ＝ -10.1℃

Which chip you work?
It seems to me that it takes a minimum frequency of 8MHz ...

Hellos,

It's the same thing...

Do not forget to put the pull up resistor

Hello,

I'm not sure, but there is no external counter input for the 328.

This entry exists on the Mega 2560 on the timer 5 (see p161 TCCR5B : CSn2, CSn1, CSn0 => 111 = External clock source on Tn pin. Clock on rising edge)

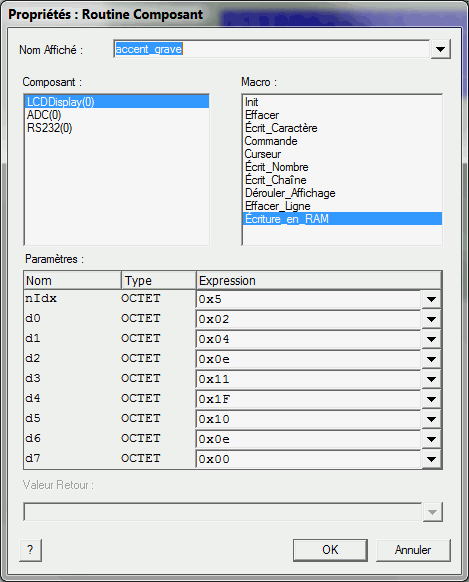

Hello,

We need a 5x8 matrix encoded

exemple : http://www.instructables.com/id/LED-Sco ... enerator-/

this is "é"

Hello,

Use "One Wire" in "Comms"

Hello,

More more faster :)

Only for Ardiuno Mega
I use er SPI register directly (SPDR) in a command C..

90ms for clear all screen

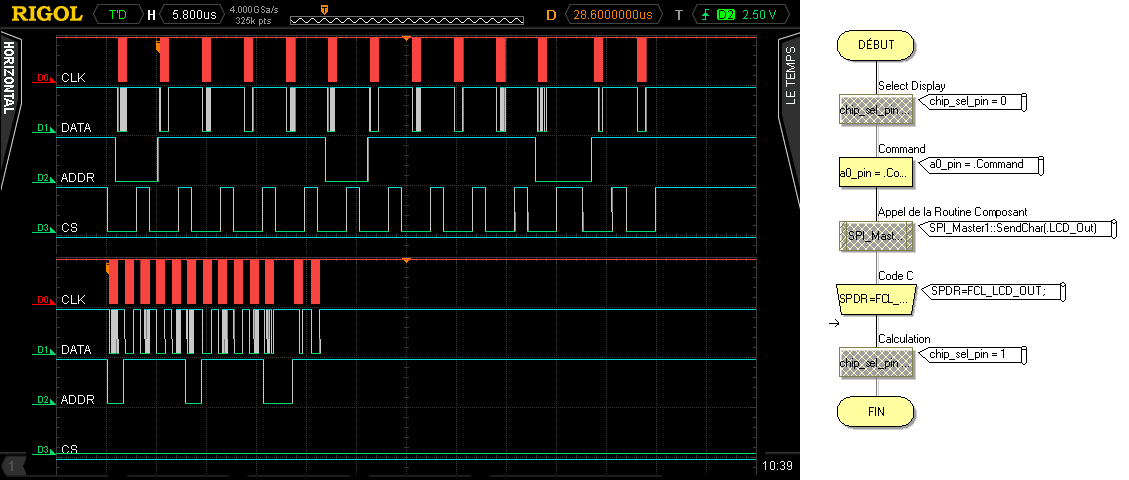

Hello,

More faster
Clear all screen in 215 ms -> 160 ms
if one uses an element in the SPI bus.
You can put the CS line to 0 and 0 to let it saves time and makes the fastest display.

Hello,


Thank you for the humidity sensor.

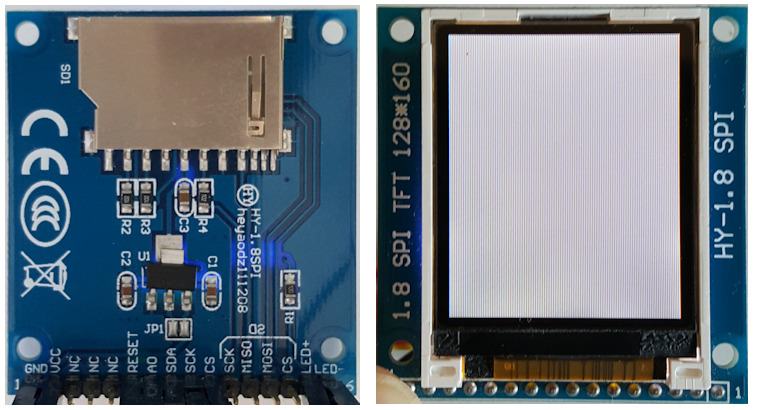

The display is 1.8 or SPI. there is not really a reference and there are many version for this inexpensive and popular display.

Hello,

I'd like to try to transform EBM016_Humidity.fcpx in DHT11, DHT22.
Can you give me the component source

Thank you

Hello,

Excellent !

Why not

I may be a few other programs propose to you...

Hello,

Is it possible to create an integrated component in Flowcode?

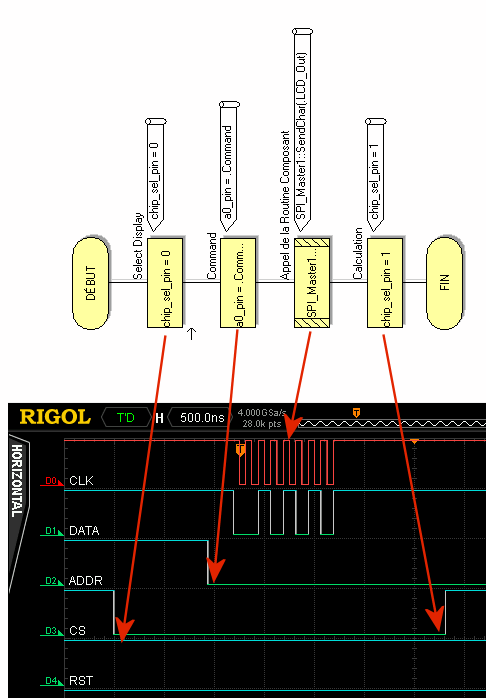

Timing
SPI Hardware : 0,5µs/div

Hi,

Thank you very much

Hello,

Yes ! It is what I did

Thank you

Hello,

Please, look the pictures.
Program Ardiuno Mega 2560
Macro "DrawBox"

Hello,

For the DHT11
8 bit integral humidity
8 bit decimal humidity =0
8 bit integral temp.
8 bit decimal temp =0

Le DHT11 ne transmet que l'entier sur 8 bits en BCD, la partie décimale =0
Le DHT22 transmet la partie entière et décimale en BCD sur 16 bits

Hello, Is it possible to change the type of screen EBM001 SPI hardware? On the version of Flowcode V5 FC5_xxx_gLCD_.c in the SPI output software. On the V6 version of Flowcode, the function is compressed and unchangeable ... Thank you V5 FC5_xxx_gLCD_.c void gLCD_SendByte (char Command, unsigned int...

Thanks for your reply. I did run it in the micro-controller but it just display 255 as a value at both, temperature and humidity. I did try to open your program but is in a different format, I could not opened it with Flowcode. How can I see it? Thanks a lot for your help. Menu -> Macro -> Import

Hello, Ce n'est pas possible de simuler le programme sur Flowcode. Il faut le tester avec un microcontrôleur. Voici le programme que je n'avais pas pu mettre (3 PJ maxi) (Importer Macro) mesureDHT.fcm Voici une application qu'il est possible de faire en l'interfaçant avec Matlab Simulink. DHT11.png

Hello

DHT11

http://www.matrixtsl.com/mmforums/viewt ... 453#p69453

Bonjour, Je vous présente mon programme pour lire les capteurs d'humidité et de température DHT11, DHT22, AM2302 Ce capteur transmet 40 bits: l'humidité en 16 bits, la température en 16 bits, et une somme de contrôle en 8 bits. trame.gif DHT11 humidité en 8 bits, température 8 bits (boitier bleu) DH...

Hello,

Yes I do. I would put very soon.
This is not the OneWire protocol.
The function did not exist in Flowcode.
