Modbus TCP, not supported component?

[MikeVerweij]

Hello,

For a current project i am using flowcode 8 to make a modbus TCP master and slave (client and server). But i've run into some problems.... The hardware i am using is a eblocks 2 multiprogrammer (BL0080). With the PIC16F18877. This one is the slave, with the thernet component from eblocks 2(BL0187-1). For the master I am using a arduino mega2560(with ethernet-shield).

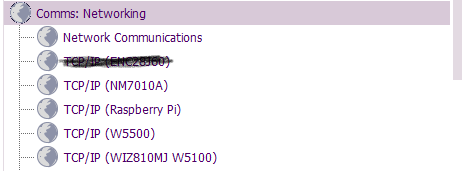

I've managed to make a working TCP master on the arduino with the software from arduino(tested with modbus-pull on my pc). But now i want to make a modbus TCP master and slave in flowcode 8. I found some examples on the forum and tried to adjust and implement these on my hardware. For the arduino this seemed to work quite well i think(not tested!), but when i want to use the component "TCP_IP_WIZ810MJ1" it seems to be not compatible with the "Networkcomms1" (see picture). Does this mean that i can't use the hardware component "BL0080" for a modbus TCP project? or is a update coming soon where this will be implemented? Or am i using the wrong component for my hardware?

Thanks in advance,

Mike

[Benj]

Hello Mike,

We keep a list of the network comms compatibility here.
https://www.matrixtsl.com/wiki/index.ph ... Components

The BL0187 uses a ENC28J60 module from Microchip which is very capable but does not have it's own on-board TCP stack which makes it hard to build compatibility for in the network comms layer. We can certainly have a look into the problem for you but I cannot promise we will be able to get this working nicely in a short time frame.

Moving to the ESP8266 wifi module might be a good alternative option for the short term?

[MikeVerweij]

Hello Mike,

We keep a list of the network comms compatibility here.
https://www.matrixtsl.com/wiki/index.ph ... Components

The BL0187 uses a ENC28J60 module from Microchip which is very capable but does not have it's own on-board TCP stack which makes it hard to build compatibility for in the network comms layer. We can certainly have a look into the problem for you but I cannot promise we will be able to get this working nicely in a short time frame.

Moving to the ESP8266 wifi module might be a good alternative option for the short term?

Thanks for your quick response Benj!

Since i don't want to wireless i'll have to stick to the wired components

Now i want to try and use the arduino with the ethernet shield to make a TCP slave, the shield uses a W5100 chip. So i created a program in flowcode.

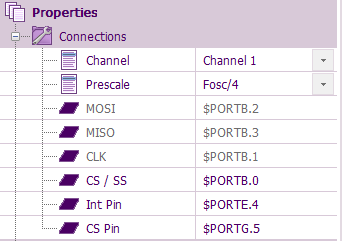

I can ping my arduino mega 2560 with it's IP-Adress, and i can find it in my router, but i can't find it with my modbus TCP slave tester.... i think that the problem lies in my SPI settings of the W5100 component.

Hardware i am using currently:
-Arduino mega 2560
-ethernet shield, W5100

How do i need to connect the SPI on the shield and how to configure that into my settings?
If the problem is'nt the SPI setting's, what could i possible be?

Thanks in advance,

Mike
