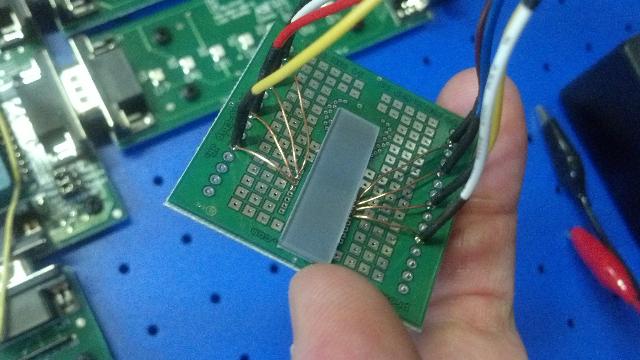

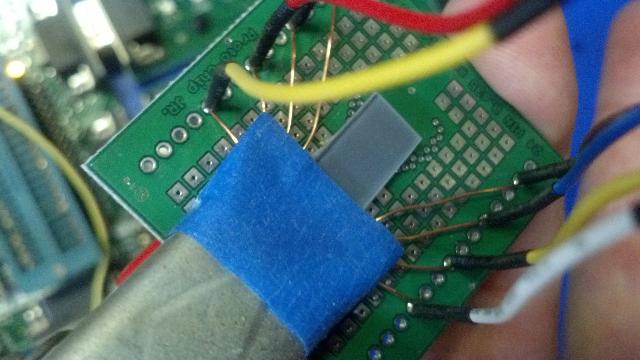

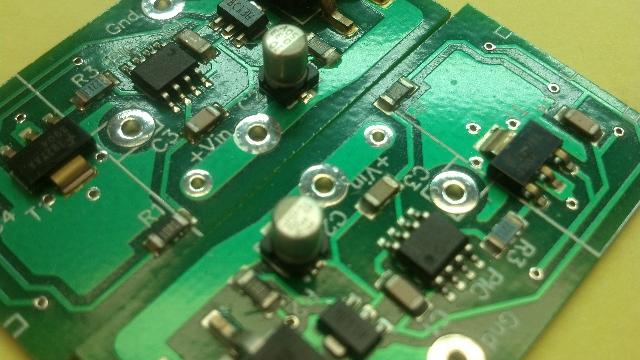

Hi Guys, I have been having a lot of fun with SMD pics! Here are a few pictures of the fixture I made to do it. It works great and I have yet to have a failure. Ben gave me a sketch with the pins that are actually needed but I could not see exactly how it should be hooked up so I just hooked up all 8 pins with short leads. Could someone clear up which pins are needed and where they would go with only an 8 pin pic? I have also been flowing my own boards in an toaster oven that I modified with great success but that’s another topic. I used a spring clamp to lock the pic down.
- Attachments
-
- 2012-08-27 16.23.55_640x360.jpg (45.14 KiB) Viewed 4173 times
-
- 2012-08-27 16.25.55_640x360.jpg (55.76 KiB) Viewed 4173 times
-

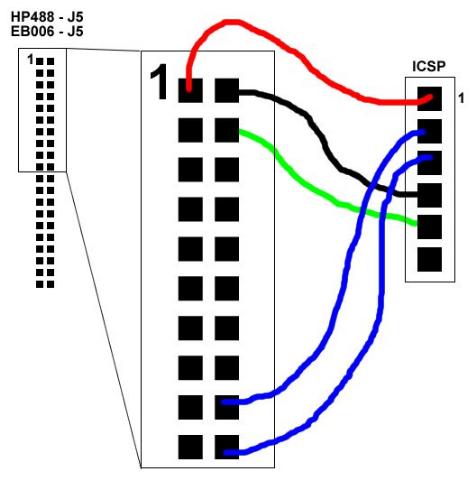

- ICSP%20from%20DEVBD_476x480.jpg (27.76 KiB) Viewed 4173 times
Last edited by Werner on Tue Aug 28, 2012 1:02 am, edited 1 time in total.
Werner
STUDENT OF: Martin - Professor of Flowcode, John, Jan, Fotios and Nicolas "Spanish Dude"
STUDENT OF: Martin - Professor of Flowcode, John, Jan, Fotios and Nicolas "Spanish Dude"
Re: Burn your own SMD pics!
More pics
This is the place I purchased these little SMD proto boards: http://protoboards.theshoppe.com/tinychip2.html
This is the place I purchased these little SMD proto boards: http://protoboards.theshoppe.com/tinychip2.html
- Attachments
-
- 2012-08-27 16.20.24_640x360.jpg (41.17 KiB) Viewed 4172 times
-
- 2012-08-27 16.20.32_640x360.jpg (49.6 KiB) Viewed 4172 times
-
- 2012-08-27 16.23.03_640x360.jpg (41.12 KiB) Viewed 4172 times
Werner
STUDENT OF: Martin - Professor of Flowcode, John, Jan, Fotios and Nicolas "Spanish Dude"
STUDENT OF: Martin - Professor of Flowcode, John, Jan, Fotios and Nicolas "Spanish Dude"
-
medelec35
- Matrix Staff
- Posts: 9521
- Joined: Sat May 05, 2007 2:27 pm
- Location: Northamptonshire, UK
- Has thanked: 2585 times
- Been thanked: 3815 times
Re: Burn your own SMD pics!
Hi Werner
Does look like your hving fun!
I should really get involved with SMD, so what you have posted is really intresting.
Thanks
For 8 pin devices:
The connections you are interested in are:
VDD = +5V = pin 1
VSS = 0V = pin 8
VPP = High programming Voltage = pin 4
PGD = Programming Data = pin 7
PGC = Programming Clock = pin 6
Does look like your hving fun!
I should really get involved with SMD, so what you have posted is really intresting.
Thanks
For 8 pin devices:
The connections you are interested in are:
VDD = +5V = pin 1
VSS = 0V = pin 8
VPP = High programming Voltage = pin 4
PGD = Programming Data = pin 7
PGC = Programming Clock = pin 6
Martin
