Hello anyone,
I am not having any problems compiling and programming programs from a past installation of V4.0.
But my compiled programs are not running on my 16f877a now.
Is V4.5? Or do I have some settings wrong?
Attached is my program, and the compiler error messages.
All old programs are running fine when downloaded to PIC. (V4.0)
Thanks in advance,
Craig C
Compiler problems.
Moderator: Benj
-
E*2Engineer
- Posts: 35
- Joined: Wed Dec 25, 2013 6:54 pm
- Has thanked: 12 times
- Been thanked: 6 times
Compiler problems.
- Attachments
-

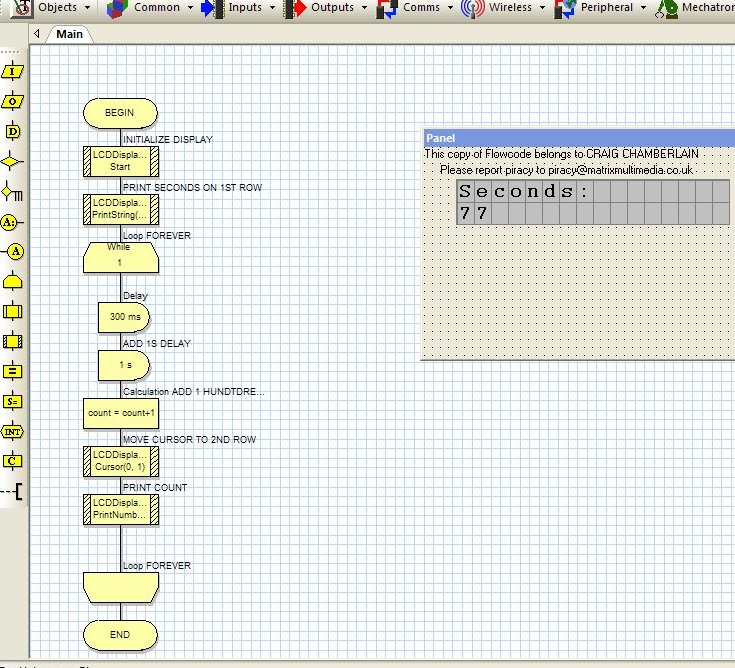

- FC program not compiling correctly
- FC program not compiling correctly.jpg (157.6 KiB) Viewed 13005 times
-
- COMPILER MESSAGES .jpg
- COMPILER MESSAGES
- (177.57 KiB) Downloaded 2411 times
-
Kenrix2
- Flowcode v5 User
- Posts: 211
- Joined: Tue Feb 19, 2013 9:51 pm
- Has thanked: 72 times
- Been thanked: 177 times
Re: Compiler problems.
I don't see any errors in the compiler message, it says success. As for it not working on your chip, maybe double check you configuration settings, the LCD component macro connections setting. Sometimes adding a 100ms to 200ms delay before LCD initialize display helps with slow starting display modules. Also, just try toggling a port pin at 1/2 second intervals and double check that the timing is correct in hardware. Try a different port for the lcd connections (like port B instead of port A), see it that helps.
Good luck.
