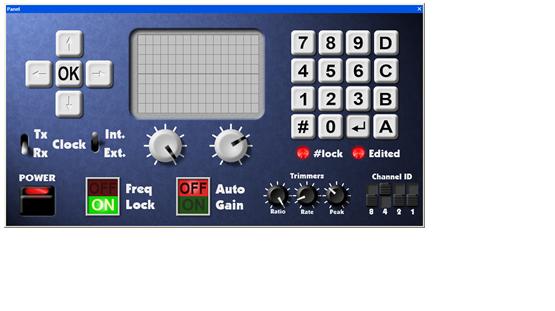

- Flowcode V4 panel.jpg (24.66 KiB) Viewed 3554 times
Graphical panel
Moderator: Benj
-
medelec35
- Matrix Staff
- Posts: 9521
- Joined: Sat May 05, 2007 2:27 pm
- Location: Northamptonshire, UK
- Has thanked: 2585 times
- Been thanked: 3815 times
Graphical panel
How do I change the standard panel to look like this one please?
The Help file does not go in to any detail. If you are going to say use The image file in properties, what would be the image name a location pls?
Martin
-
medelec35
- Matrix Staff
- Posts: 9521
- Joined: Sat May 05, 2007 2:27 pm
- Location: Northamptonshire, UK
- Has thanked: 2585 times
- Been thanked: 3815 times
Re: Graphical panel
The above picture is a screen shot from the help file, in the section 'Personalizing the simulation panel 'I would assume it is me not quiet understanding how to change form the standard panel, rather then this panel is not available since it is in the help file. If the picture file is not in the Flowcode directory, either can a link be posted, or the actual file please?
Martin
-
Steve
- Matrix Staff
- Posts: 3434
- Joined: Tue Jan 03, 2006 3:59 pm
- Has thanked: 114 times
- Been thanked: 422 times
Re: Graphical panel
That picture is partly graphic and partly real Flowcode components. The image itself is not available.
Note that we have a number of custom images for components (leds, switches, etc), textures for panels and miscellaneous images (e.g. screw fittings). We forgot to make these available in the initial release of Flowcode, but they should be available fairly soon.
Note that we have a number of custom images for components (leds, switches, etc), textures for panels and miscellaneous images (e.g. screw fittings). We forgot to make these available in the initial release of Flowcode, but they should be available fairly soon.
