Saving Images in Flowcode

Saving a Flowchart Image

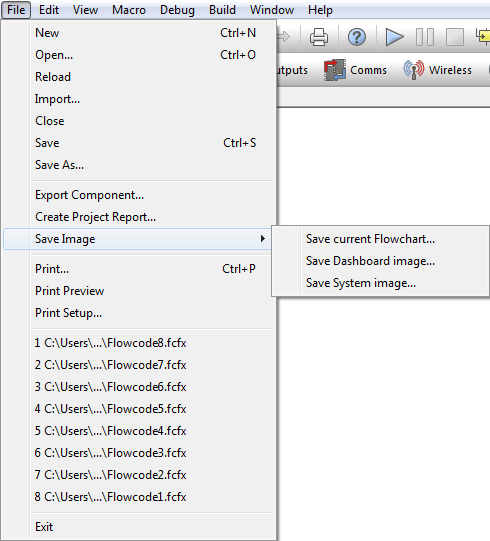

To save an image of the currently active flowchart select 'Save current Flowchart...' from the 'Save Image' sub-menu in the 'File' menu (File > Save Image > Save current Flowchart...).

This function saves an image of the program to any file in the format chosen from the list:

• Bitmap (*.bmp)
• JPEG (*.jpg;*.jpeg)
• GIF (*.gif)
• PNG (*.png)

Note that the current zoom rate is used to determine the resolution of the image saved. If you need high quality images for printing then increase the zoom rate.

Saving a Panel Image

From the 'Save Image' menu you also have the option to save the current image on either the 'Dashboard Panel' or the 'System Panel' (File > Save Image > Save Dashboard image... / Save System image...).

These images can be saved to any file format chosen from the list:

• Model (*.mesh)
• Bitmap (*.bmp)
• JPEG (*.jpg;*.jpeg)
• GIF (*.gif)
• PNG (*.png)
