I'm trying to read status of an Si4455 wireless module using SPI, but getting no response.
I suspect it's to do with my SPI clock stopping after the request for info is sent on the MOSI line (0x44), but the Slave appears to need the clock kept running whilst it sends back an answer?

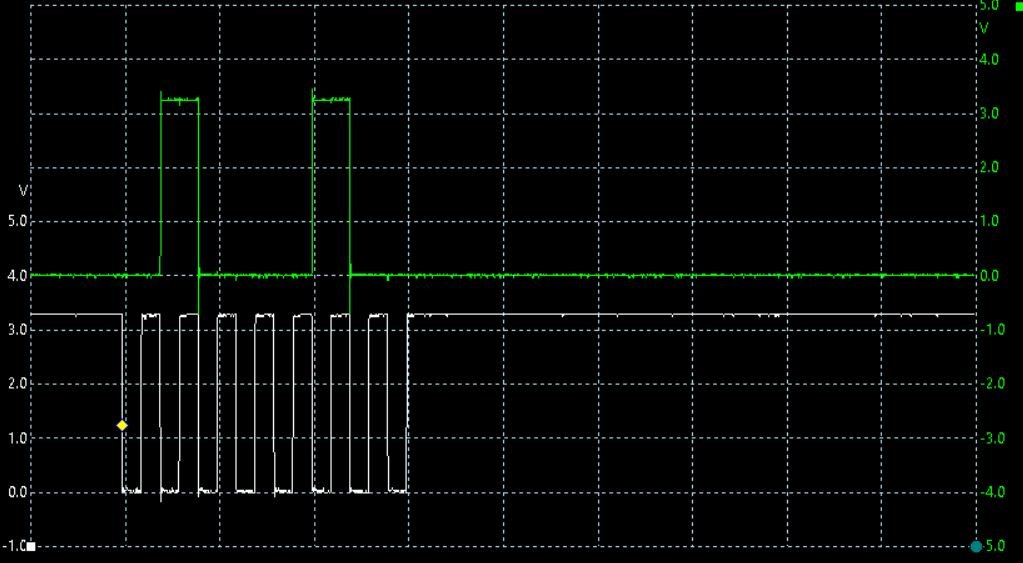

SPI out

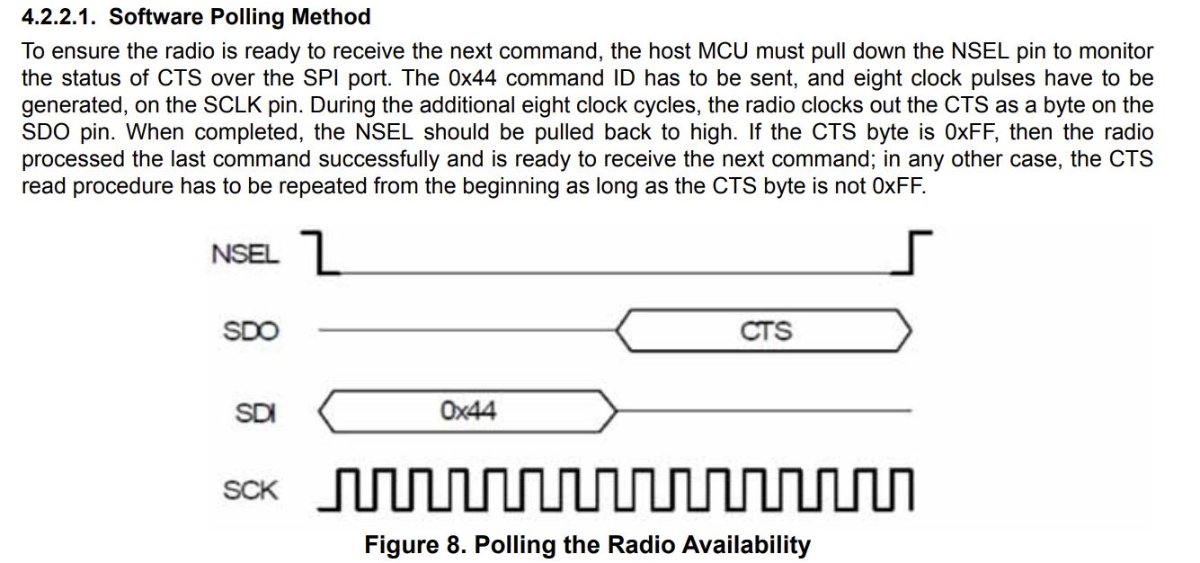

Si4455 SPI requirements.
I also noticed the SPI from my PIC16F88 is sending a character when the read character function is used. Is this normal?
Is there a way to keep the clock running past a send command in flowcode, or maybe I am not understanding the Si4455 requirements properly?
Thank you.
SPI read difficulty
-
- Posts: 8
- http://meble-kuchenne.info.pl
- Joined: Tue May 11, 2021 10:53 pm
- Has thanked: 3 times
- Been thanked: 1 time
-
- Matrix Staff
- Posts: 1610
- Joined: Wed Dec 02, 2020 11:07 pm
- Has thanked: 567 times
- Been thanked: 531 times
Re: SPI read difficulty
I'm not an expert on SPI but after sending the info request, then you will need to send dummy data e.g 0.
That will run the clock so the SPI data will receive the data on the MISO line.
That will run the clock so the SPI data will receive the data on the MISO line.
Martin
-
- Matrix Staff
- Posts: 1895
- Joined: Mon Dec 07, 2020 10:06 am
- Has thanked: 491 times
- Been thanked: 664 times
Re: SPI read difficulty
Hello,
SPI is always bi directional and so everytime you send a byte you also receive a byte. Usually only one of the bytes has significance.
So for this you would send 0x44, ignoring the incoming byte and then send a dummy byte, and collect the incoming byte.
SPI is always bi directional and so everytime you send a byte you also receive a byte. Usually only one of the bytes has significance.
So for this you would send 0x44, ignoring the incoming byte and then send a dummy byte, and collect the incoming byte.
Regards Ben Rowland - MatrixTSL
