HC-SR04 not working with ""Pic"" Anymore

[daddytims_tims]

Hi
Goodmorning Everyone,

I was doing a project earlier back before the summer starts with the Hc-Sr04. "NOW ITS NOT WORKING"

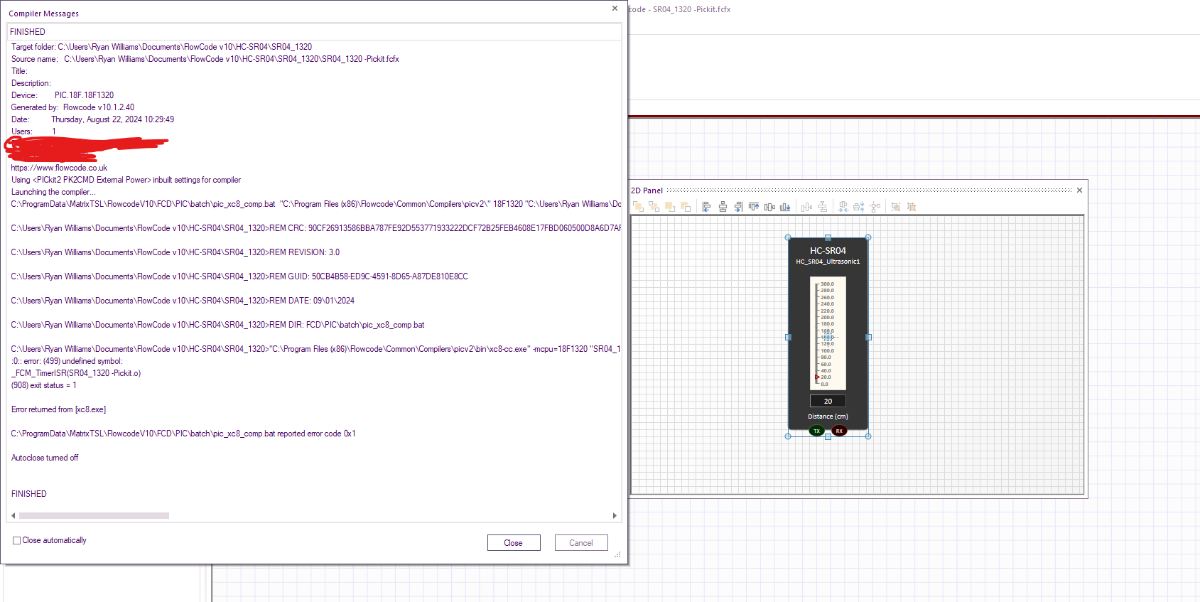

It's not compiling with Pics anymore.

I did some trouble shooting and found out that something is wrong with the Hc-SR04 Component.

Can you guys Check on it. Please and Thanks again.

regards.

[jgu1]

Neither in Arduino

Br Jorgen

[medelec35]

Hi.
Many thanks for the report.
I will be looking into this today

[medelec35]

Hi.
I have hopefully fixed the HC-SR04, but it won't be pushed on to the update system until next week.
To try the component.
Browse to this location using file explorer , it's hidden by default so just paste the link into your address bar.

Code: Select all

%ProgramData%\MatrixTSL\FlowcodeV10\Components

Place the attached component.
If Flowcode is already open, then you will need to reload your project for the new component to work
If you run any component updates, then the component you added will be overwritten, so it will stop working again (unless the component update has been pushed).

[jgu1]

Hi Martin!

Sorry not working. If I try to open one of my previus project with the UL sensor, it missing on the 2D board and the componentmacro is strange.
If I then add a new macro I get the screen as you see on the picure.

By the way Martin, your earlyer UL component has working perfectly, why does it suddently not working??

I have the proffesional licence?

Br jorgen

[medelec35]

Hi Jorgen.
As all the components for FC10 are free, you should not be seeing that popup.

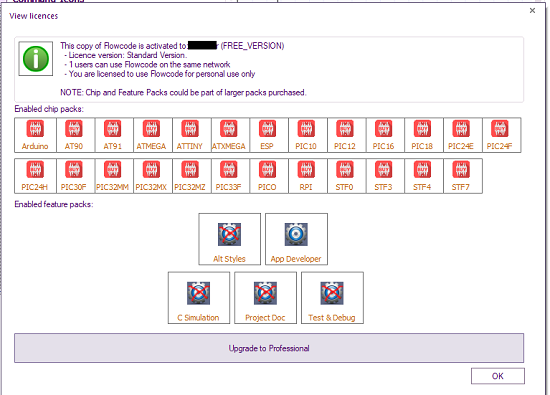

As a sanity check I have just used a free version of Flowocde v10:

FC10 Free version.png (86.4 KiB) Viewed 9191 times

The modified component allows to be added OK and is compiling for me.
The only reason for seeing the pop up is when you try and add a component that was created for FC9 or below in to

Code: Select all

%ProgramData%\MatrixTSL\FlowcodeV10\Components

By the way Martin, your earlyer UL component has working perfectly, why does it suddently not working??

The main reason could be a child of the component has changed, casing a knock-on effect.
Can you try readded the attached component to

Code: Select all

%ProgramData%\MatrixTSL\FlowcodeV10\Components

then reload, or close FC10 then reopen
Does anyone else also have the same issue?

[jgu1]

Well ok Martin. Normal I have no problem with opening a FC9 project in FC10. Something newer?

Still no luck with the new component. Now I get a new error.

Br Jorgen

[medelec35]

The error is cause by the HC-SR04 pins being set to pins that don't exist
You need to change the pins from port A (as that does not exist within Arduino Uno) and select pins within port B, C or D

[daddytims_tims]

Hi Martin

I just tried. It still doesn't work. I copy the file to the folder updated it, try compiled but fail.
I restarted the win 11/ project It still fails.

I am using v10

[jgu1]

I can compile now but the distance show random numbers.
