I have a question.
Is it impossible to use the RD7 as the UART RX on the PIC24FJ512GA606?
Thank you.
Question UART Pin Mapping
-
seokgi
- Posts: 244
- http://meble-kuchenne.info.pl
- Joined: Thu Dec 03, 2020 1:43 pm
- Has thanked: 8 times
- Been thanked: 9 times
-
medelec35
- Valued Contributor
- Posts: 2391
- Joined: Wed Dec 02, 2020 11:07 pm
- Has thanked: 759 times
- Been thanked: 825 times
Re: Question UART Pin Mapping
Hello.
A new Flowcode v11 only feature.
Within Flowcode, select Build > Online Stuff > Target chip peripheral pins
Within the new window that opens select Upload Project icon then Reload icon
You can then scroll down all the pins to see what they support.

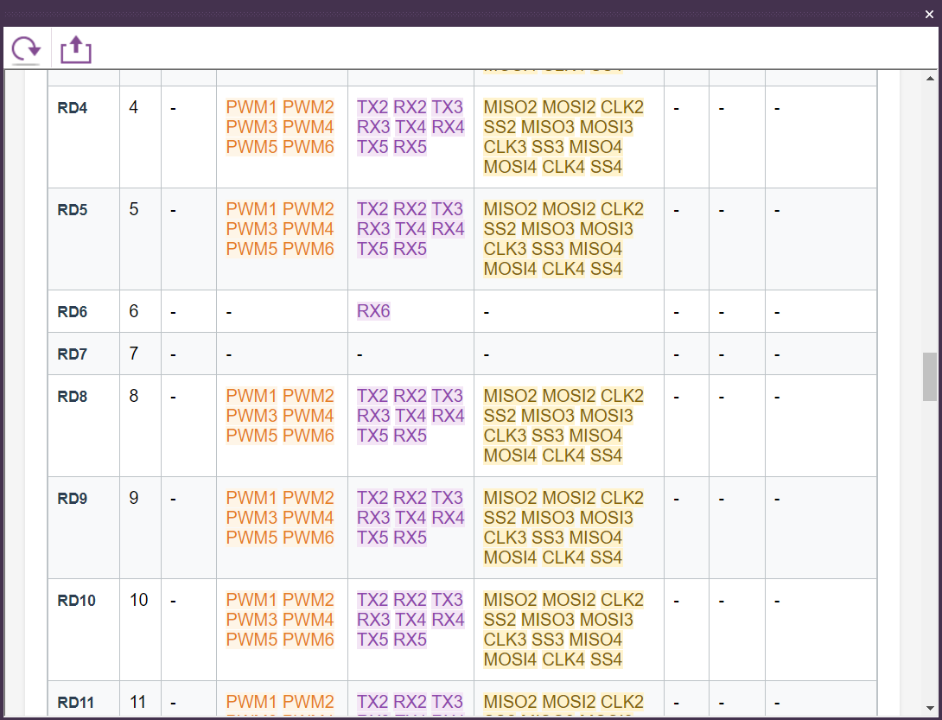

Below is what you should expect to see:
A new Flowcode v11 only feature.
Within Flowcode, select Build > Online Stuff > Target chip peripheral pins
Within the new window that opens select Upload Project icon then Reload icon
You can then scroll down all the pins to see what they support.
Below is what you should expect to see:
- peripheral pins.png (244.04 KiB) Viewed 26 times
Martin
