Component: Level (DSP Outputs)
(Redirected from Component: ID e648c3de ec39 4a3f bbd9 46e45cce4a63)
| Author | Matrix Ltd |
| Version | 1.2 |
| Category | DSP Outputs |
Level component
Allows for detection and collection of peaks, troughs and averages.
Component Source Code
Please click here to download the component source project: FC_Comp_Source_DSP_Level.fcfx
Please click here to view the component source code (Beta): FC_Comp_Source_DSP_Level.fcfx
Detailed description
No detailed description exists yet for this component
Examples

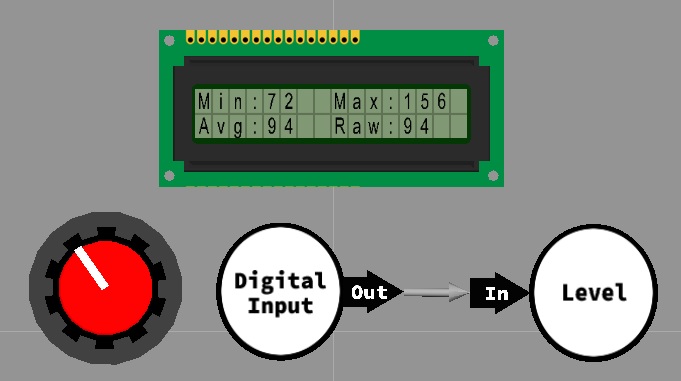

Here is a basic example of the Level component. The example collects the max, min and average readings from the buffer and displays them on the LCD display.
The values in the buffer are defined using the InputADC component.
Min: Minimum (smallest) value read from the buffer.
Max: Maximum (largest) value read from the buffer.
Average: Rolling average calculated from the values inside the buffer.
Macro reference
ReadAverage
|
ReadAverage |
| Returns the average from the last "Decay" number of index locations. | |
 - LONG
|
Return |
ReadAverageArray
|
|
ReadAverageArray |
| Returns the average from the last "Decay" number of buffers. | |
 - UINT
|
Return |
ReadPeak
|
|
ReadPeak |
| Returns the highest value from the last "Decay" number of index locations. | |
| - LONG
|
Return |
ReadPeakArray
|
|
ReadPeakArray |
| Returns the highest value from the last "Decay" number of buffers. | |
| - UINT
|
Return |
ReadTrough
|
|
ReadTrough |
| Returns the lowest value from the last "Decay" number of index locations. | |
| - LONG
|
Return |
ReadTroughArray
|
|
ReadTroughArray |
| Returns the lowest value from the last "Decay" number of buffers. | |
| - UINT
|
Return |
ResetRecords
|
|
ResetRecords |
| Allows the peak and trough to be reset back to default values. | |
 - BOOL
|
ResetPeak |
| - BOOL
|
ResetTrough |
 - VOID
|
Return |
Property reference
|
Properties |
|
Connect To |
| DSP component with output buffer to collect our data from. | |
|
Decay on Peak/Trough |
| Yes - The Peak and Trough value will only be maintained for the decay number of buffers. No - The record Peak and Trough values will be maintained until reset. | |
|
Decay |
| Configures how many buffers or values to allow a record to persist | |
