Felix.
Genau that could be the one I do not know the WROOM board you should select it in the Flowcode Properties and try ,if it does not work as your board supplier why this thing is not working .
To test if it is the correct port for the board just unplug it and see if the port number is removed from the list and plug the board in again then it should show again in the list
ESP 32 Toolchain problem
- p.erasmus
- Posts: 434
- http://meble-kuchenne.info.pl
- Joined: Thu Dec 03, 2020 12:01 pm
- Location: Russia / Россия
- Has thanked: 104 times
- Been thanked: 88 times
-
- Posts: 48
- Joined: Wed Feb 24, 2021 1:20 pm
- Been thanked: 2 times
Re: ESP 32 Toolchain problem
Thank you again
Yes, I plugged and unplugged my ESP32 WROOM32 and so the information I pointed to in my last image appeared and disappeared. I also activated the correct device. I could program my device without any problems from the Arduino IDE. But the Flowcode Plattform seems to be much more comfortable and I consider to buy it. If you don't mind, please ask one of your teammembers to do the test on a ESP32 WROOM32, because this type is very popular. Look how many views our dialogue has and how may users are desperately hoping for an answer.
Thank you for further help
Felix
Yes, I plugged and unplugged my ESP32 WROOM32 and so the information I pointed to in my last image appeared and disappeared. I also activated the correct device. I could program my device without any problems from the Arduino IDE. But the Flowcode Plattform seems to be much more comfortable and I consider to buy it. If you don't mind, please ask one of your teammembers to do the test on a ESP32 WROOM32, because this type is very popular. Look how many views our dialogue has and how may users are desperately hoping for an answer.
Thank you for further help
Felix
-
- Valued Contributor
- Posts: 402
- Joined: Mon Dec 07, 2020 1:00 pm
- Has thanked: 75 times
- Been thanked: 220 times
Re: ESP 32 Toolchain problem
So you have set COM4 in the settings?
You might need to press a "program" button on the ESP board?
Could you please attach your project msg.txt file that is created by Flowcode when you have tried to program to device.
You might need to press a "program" button on the ESP board?
Could you please attach your project msg.txt file that is created by Flowcode when you have tried to program to device.
-
- Posts: 48
- Joined: Wed Feb 24, 2021 1:20 pm
- Been thanked: 2 times
Re: ESP 32 Toolchain problem
Yes, I have chosen the COM4 Port in the settings.
Yes, I have pressed the 2 Buttons in all possible sequences and combinations before sending the program to the device.

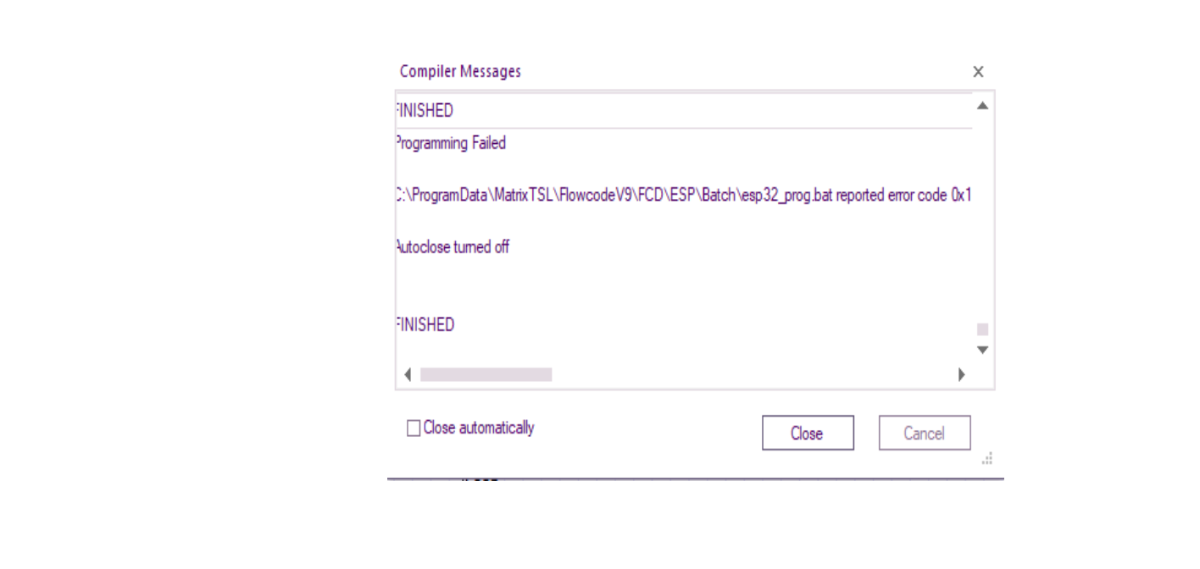

Unfortunately I still got the message : Programmng failed

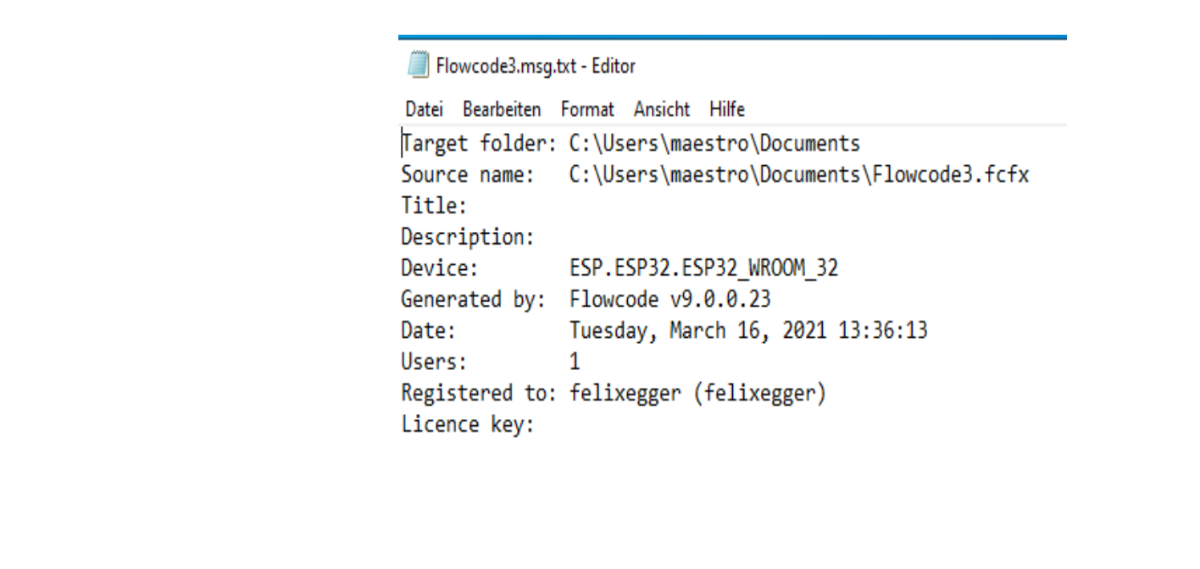

Here is my msg.txt file
Thanks
Yes, I have pressed the 2 Buttons in all possible sequences and combinations before sending the program to the device.
Unfortunately I still got the message : Programmng failed
Here is my msg.txt file
Thanks
- Attachments
-
- msg.png (160.31 KiB) Viewed 4559 times
-
- Posts: 48
- Joined: Wed Feb 24, 2021 1:20 pm
- Been thanked: 2 times
-
- Posts: 48
- Joined: Wed Feb 24, 2021 1:20 pm
- Been thanked: 2 times
Re: ESP 32 Toolchain problem
Sorry, here comes my newest msg.txt file
- Attachments
-
- Flowcode6.msg.txt
- (10.18 KiB) Downloaded 162 times
Re: ESP 32 Toolchain problem
Hello Felix
first I would suggest to just compile your programm just as a HEX file.
If this compiles OK the main part of the toolchain seems to be OK. If not different story.
Secod step compile and prog/flas your ESP32 device.
With my ESP32 WROOM device wich I bought from AZ Delivery there is no need to push any button in order to prog/flash.
It will be progged always direct from the FC9 surface.

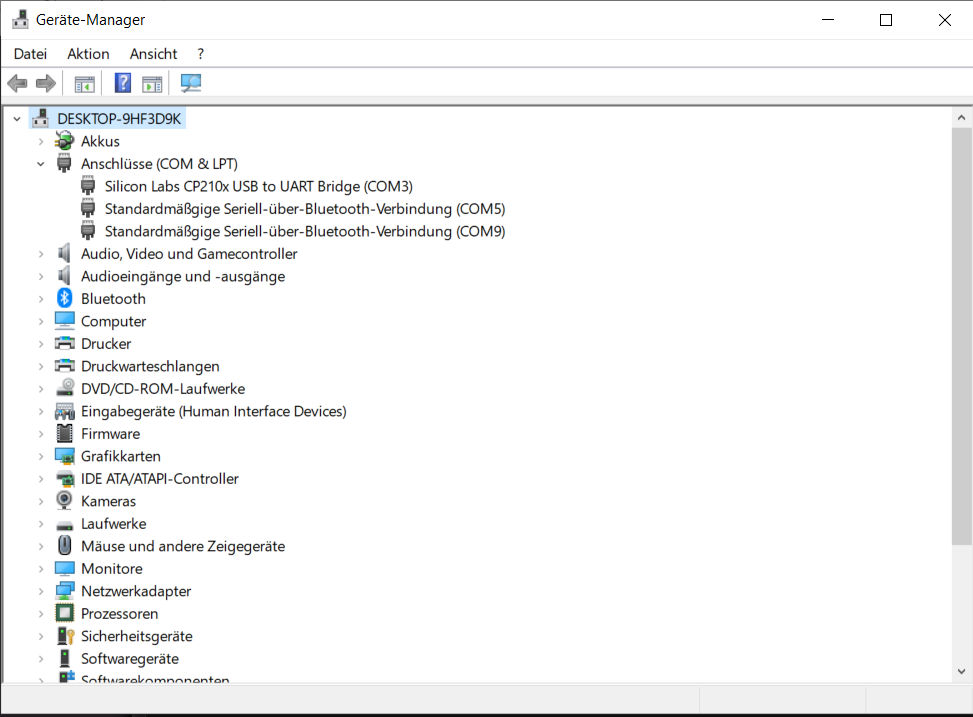

In case that progging is a problem check your device manager that the ESP32 is available under COM ports.
Pls. see the following example:
In my WIN10 case it is installed under COM3 as Silicon Labs
BR
Dirk
first I would suggest to just compile your programm just as a HEX file.
If this compiles OK the main part of the toolchain seems to be OK. If not different story.
Secod step compile and prog/flas your ESP32 device.
With my ESP32 WROOM device wich I bought from AZ Delivery there is no need to push any button in order to prog/flash.
It will be progged always direct from the FC9 surface.
In case that progging is a problem check your device manager that the ESP32 is available under COM ports.
Pls. see the following example:
In my WIN10 case it is installed under COM3 as Silicon Labs
BR
Dirk
Happy FC9, FC-8 and FC-6 professional user
-
- Valued Contributor
- Posts: 402
- Joined: Mon Dec 07, 2020 1:00 pm
- Has thanked: 75 times
- Been thanked: 220 times
Re: ESP 32 Toolchain problem
Yes, just to confirm, the programming COM PORT is not set properly in the Project Settings.
You need to explicitly select it from the drop list and then click Modify button.
You need to explicitly select it from the drop list and then click Modify button.
