You posted whilst I typed.
It would be easy to add a delay between bytes sent if required.
The code I posted 'should' (famous last words) be in the correct 8n2 format - and at 250000baud. My logic analyser isn't keen on reading them - though probably would if I tweaked the baud rate for testing?
DMX master has issues
-
mnfisher
- Valued Contributor
- Posts: 2017
- http://meble-kuchenne.info.pl
- Joined: Wed Dec 09, 2020 9:37 pm
- Has thanked: 159 times
- Been thanked: 943 times
-
chipfryer27
- Valued Contributor
- Posts: 2001
- Joined: Thu Dec 03, 2020 10:57 am
- Has thanked: 435 times
- Been thanked: 651 times
Re: DMX master has issues
Hi Martin
Looking good. No issues on my analyser
I modified to wait one second before repeating for clarity.

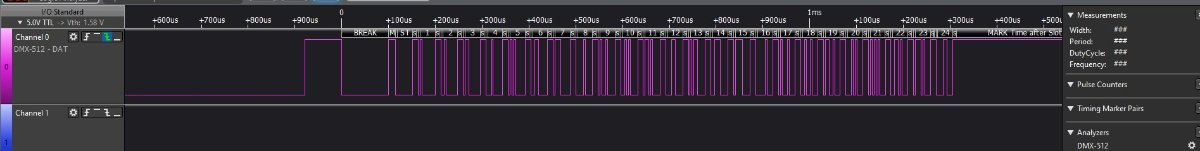

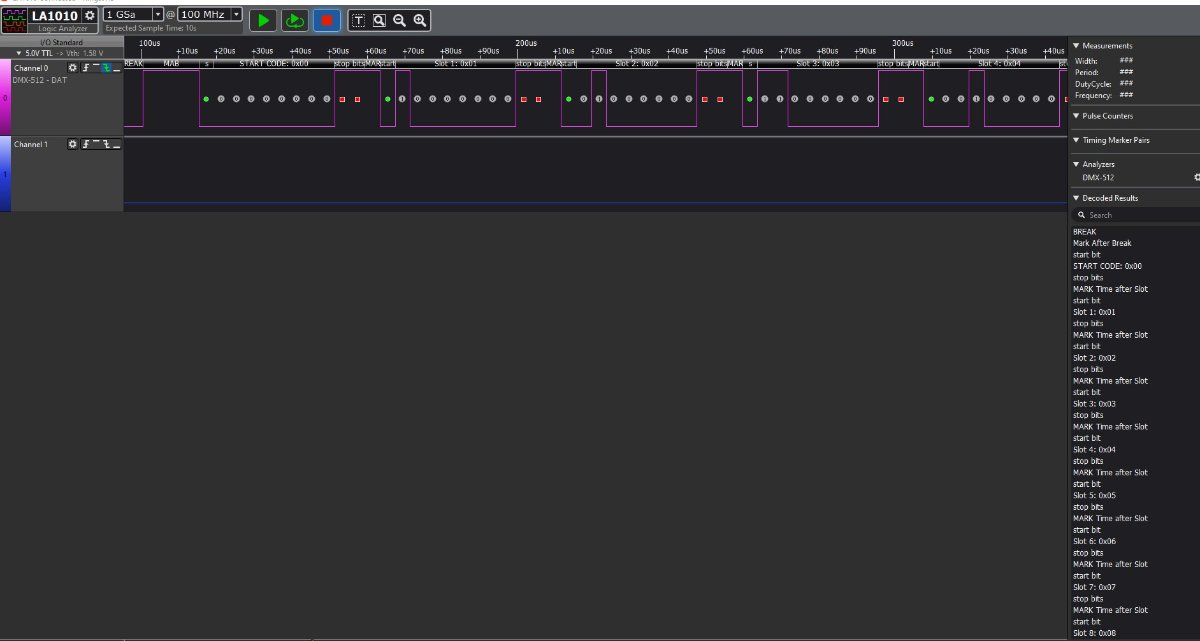

Attached show captures.

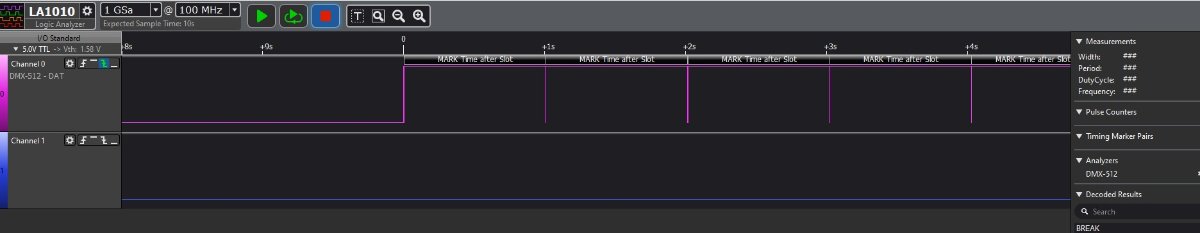

In the last one you can see the data incrementing
Regards
Looking good. No issues on my analyser
I modified to wait one second before repeating for clarity.
Attached show captures.
- 1.jpg (34.25 KiB) Viewed 1113 times
- 2.jpg (32.39 KiB) Viewed 1113 times
- 3.jpg (67.11 KiB) Viewed 1113 times
Regards
