GLCD Display Manager Overhaul

[BenR]

Hello,

I may now have fixed the WS2812B component, it seems to be compiling and outputting signals so that's promising.

I haven't confirmed with the LEDs just yet as I'm remote desktop and can't see if the LED is lighting or not I'll confirm tomorrow.

[BenR]

Ok it looks like the WS2812B is now working, but only if you only have up to 2 of the LEDs connected. Any more and there is a gap in the transmission that is long enough to break the data chain.

I'm on it and will hopefully be able to solve this soon.

[BenR]

Right now working on the WS2812B, note I have tested using an ESP32S3 and 6 LEDs with a rainbow effect to ensure no corruption in the output.

The code should hopefully now allow an arbitrary number of LEDs and also hopefully work on any ESP32 but let me know if you come across any issues.

I pass the LED data two LEDs at a time to the RMT peripheral on the ESP and this handles the output and I used to wait for the TX complete flag to return true before passing in the next pair of data but this is now several hundreds of microseconds after transmission ends and so cannot be relied upon anymore. So I've reverted to a fixed delay which is working well in this instance but we shall see.

[jgu1]

Hi Ben!

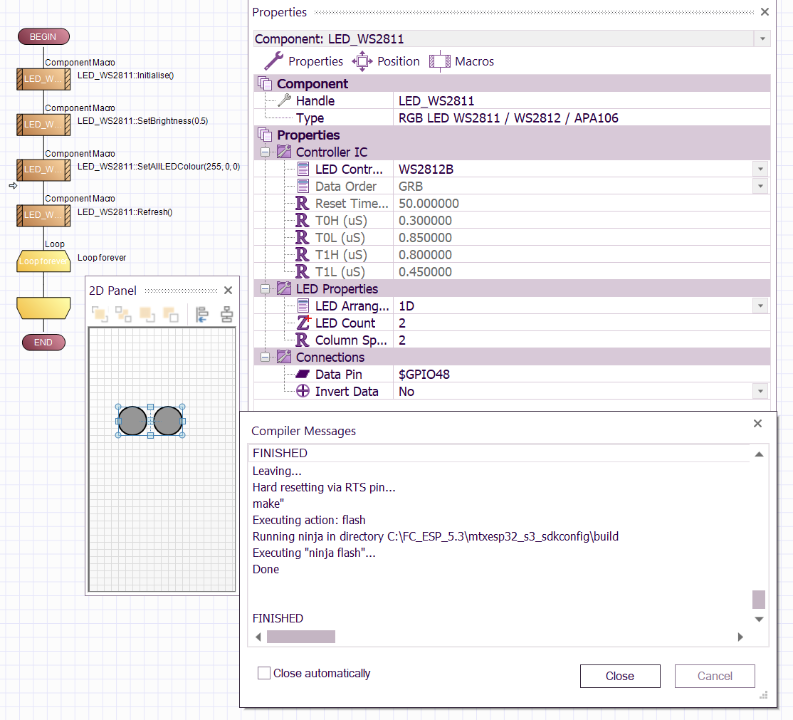

I have made test. Full update. No changes for me. I use the ESP32 S3 DEV board. I use the pin 48 which is connected to the onboard WS2812 Led.
No data is comming out of pin 48.
When I add the WS2812 the "led" shown as in the picture on the 2D screen. Maybe I have overseen something.

Br Jorgen

[jgu1]

Hi Ben!

Have you had time to look into the WS28xx component? As you can see, in FC11 the LEDs do not resemble the actual LEDs as intended. In FC10 they are displayed correctly in the 3D panel, whereas in FC11 they are shown in the 2D panel, appear as square, and do not work in the simulation.
I test with the ESP32 s3 dev board, the led on the pcb.
Thank you in advance.

Br Jorgen

[BenR]

Hi Jorgen,

Just checking but have you done a full database update, it could be something underlying like the clone matrix is missing.

The latest version of the component should be able to be added to both the 3D panel and the 2D panel. You should be able to right click the component on the toolbar and choose where it is added.

As a check can you click on View -> Component Debugger and then check the Expose Full Component tree.

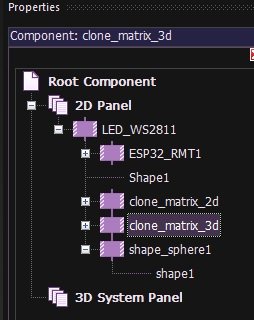

In the properties pane your tree should look like this.

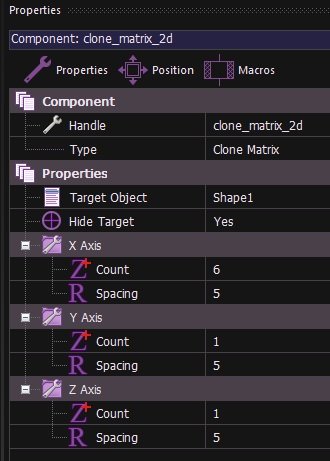

Also check that the clone_matrix_2d has properties that look like this.


This is what I'm seeing so be useful to find out what's different for you.


[jgu1]

Thank you!

Full update, always

I follow your guide and the setting look equal.

After I have restart FC I could see the Led on 2d and I can simulale, but not working in ESP32 s3 HW. If I add a new WS28xx ,they are squared again.

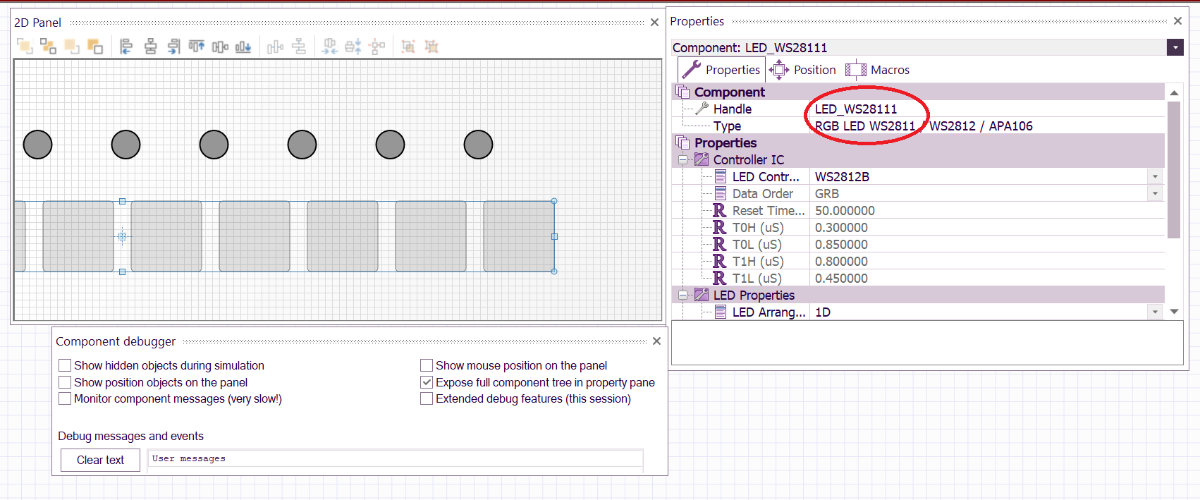

In the Proporties, hsndle the component name is WS23111.

Jorgen

[BenR]

Hello,

Please can you check the LED component pin connection property has the "Use Chip References" ticked. I think currently without it ticked it may be causing issues working out which pin to use.

I'll investigate and see if we can get it to work in the GPIO mode too.

[jgu1]

Hi Ben!

I have tested both, guess it was this you mean But no ligth in the led.

Jorgen
