Digital clock using ATmega1284P, 4x 7-digits + DP, RTC and temperature

[andeug]

Hi,

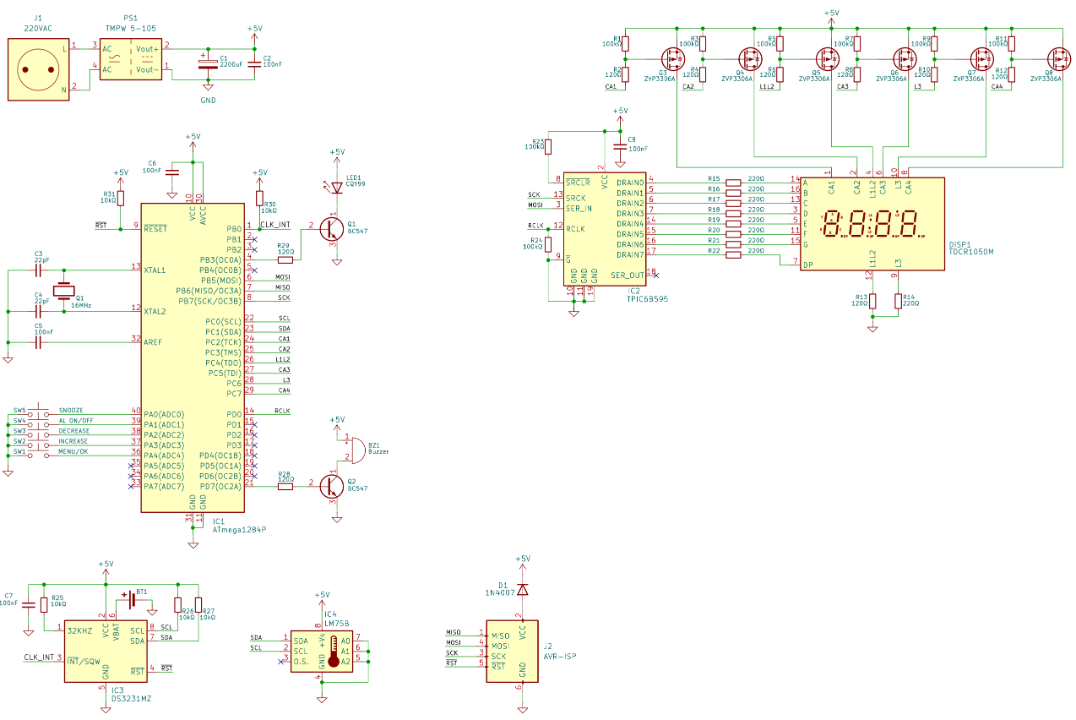

I have started today to work on a digital clock project, to which I am posting its schematic in KiCad below:

Screenshot 2026-02-22 190503.png (210.67 KiB) Viewed 57 times

The clock has a DP for a comma when indicating the temperature; L1L2 indicate the blinking seconds; and L3 indicates the degrees in Celsius.
The display I am using is a TDCR1050M from Vishay, which is widely available, and as a shift register, I am using TPIC6B595, which, in my schematic, makes sense for a future need or possible upgrade to a larger display with more LEDs per segment.

The clock is programmable via the ATMEL-ICE programmer, via the AVR-ISP interface.

Below, I am enclosing the basic FC file with which I have started my project - is it correct, or do you have any suggestions for improvement?

Digital clock 0.1.fcfx

(39.9 KiB) Downloaded 11 times

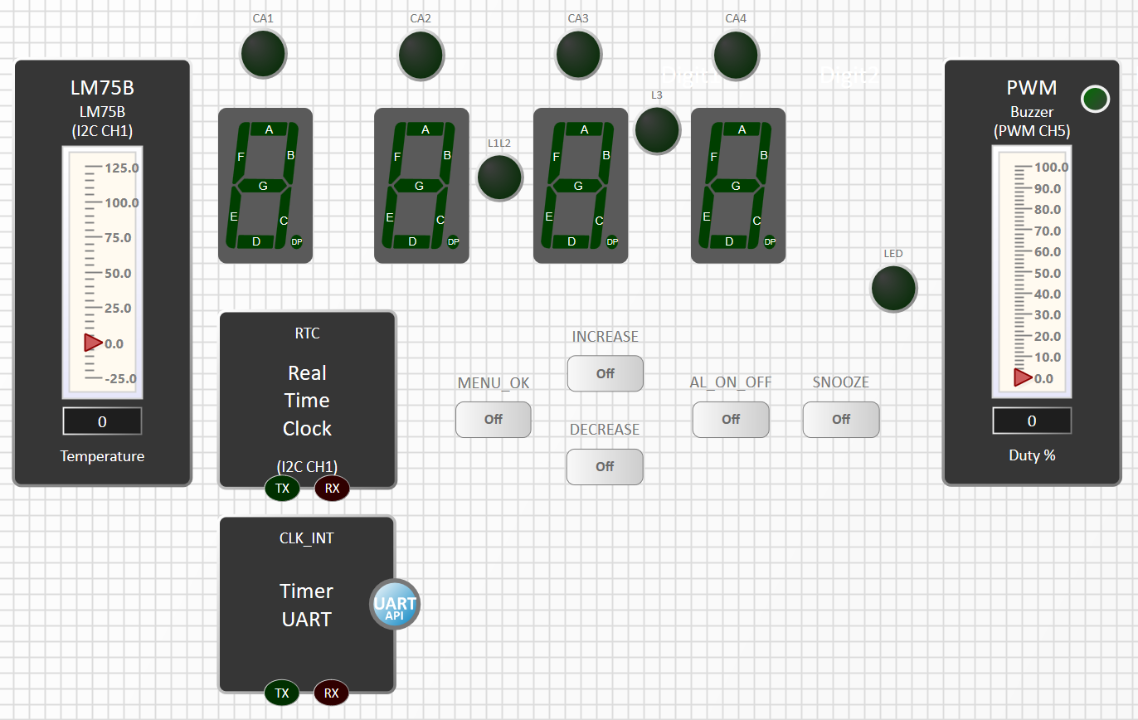

Is this the way I should represent my display's configuration with a common anode and one shift register?

Screenshot 2026-02-22 191858.png (242.25 KiB) Viewed 57 times

Regards,
Andreas

[chipfryer27]

Hi

With no code it's hard to say.

However, you are probably aware that although the display will not simulate correctly it could still be very informative to indicate what is happening. The LEDs you are using to illustrate CA1 etc are active high in your chart, but in reality according to your schematic will be active low.

Your actual display isn't connected to any port at all, instead to a shift-register, so having them connected to two chip pins may lead to confusion. However "clocking" a value to them would be indicative of sending to a shift-register so that point may be moot.

If simulating using the chart I'd imagine that ALL digits would display the digit irrespective of position, but your CA1 LED etc would illustrate what digit was actually illuminated.

Share your code as you go and I'm sure the forum will help where we can.

Regards
