Saving Images in Flowcode

Saving a Flowchart Image

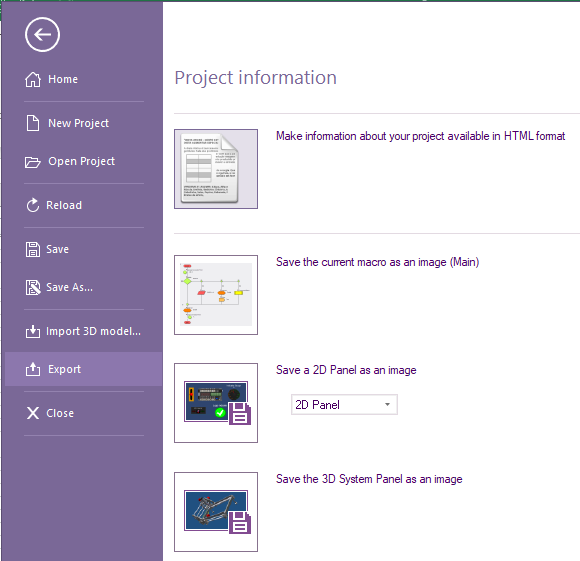

To save an image of the currently active flowchart select 'File' > 'Export' 'Save current macro as an image (current selected macro)

This function saves an image of the program to any file in the format chosen from the list:

• Bitmap (*.bmp)
• JPEG (*.jpg;*.jpeg)
• GIF (*.gif)
• PNG (*.png)

Note that the current zoom rate is used to determine the resolution of the image saved. If you need high-quality images for printing then increase the zoom rate.

Saving a Panel Image

From the 'File' > 'Export' menu you also have the option to save the current image on either the '2D Panel' or the '3D System Panel' (File > Export > Save Image > Save 2D Panel as an image... / Save 3D System Panel a san image).

These images can be saved to any file format chosen from the list:

• Model (*.mesh)
• Bitmap (*.bmp)
• JPEG (*.jpg;*.jpeg)
• GIF (*.gif)
• PNG (*.png)
