Slow I2C Component Macro [Solved]

[Sasi]

Hello,
I tested the I2C component with a PIC16F1779 MCU and a 47C04 type EERAM.
Writing and reading work correctly, and the operations complete in about 100 µs.
However, the Component Macro continues to run for another 10 ms after a write or read operation.
What do you think could be causing this?

Thank you in advance for your help.

Regards,
Sasi

PIC16F1779_I2C_TEST.fcfx

(12.8 KiB) Downloaded 11 times

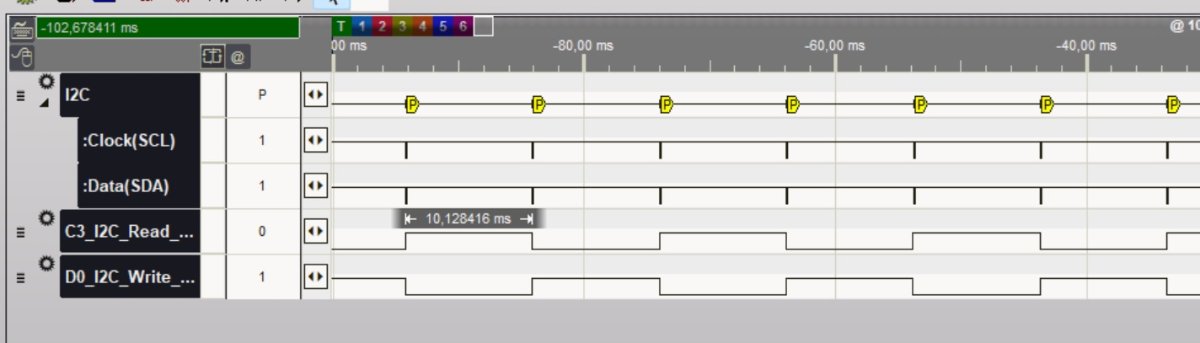

I2C_Generic Read and Write.jpg (45.5 KiB) Viewed 241 times

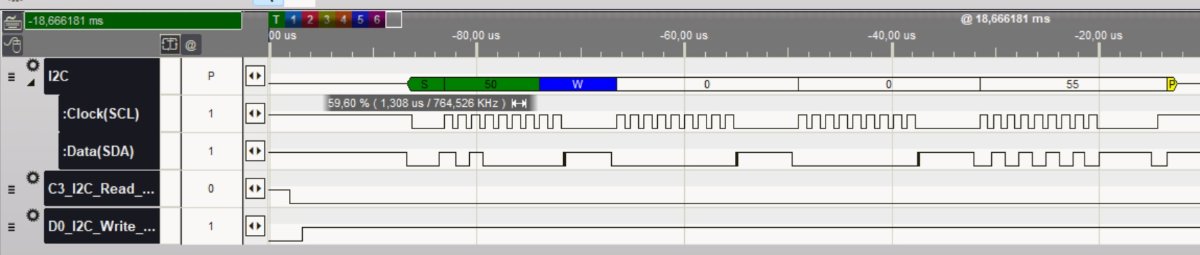

I2C_Generic Write zoomed.jpg (43.13 KiB) Viewed 241 times

[Sasi]

I realized that I had omitted the I2C component initialization command from the test project.
Presumably, without this, the other I2C operations should not function correctly.
I tried placing the I2C initialization block before the main loop, but it made no difference write and read operations still take approximately 10 ms to complete.

In the current project I'm working on, I2C transactions are required to be executed within interrupts triggered every 500 µs.
Currently, the program freezes while executing the first such macro.

[mnfisher]

In the i2c properties there is a 'stop delay' setting - check this is set to no.

Martin

[Sasi]

Hi Martin,

Thank you very much for your help, it works perfectly after I turned off the Stop delay.

Regards,
Sasi
