LTSR 15

[jgu1]

Hi Martin!

I will not hijack in FC8 forum concerning the above, thats why I ask here.

I have tested your new component. Seemed to work nicely, but sometime fluativatin a little, and as I see the Ref on the LTSR is sensitive. Do you know what I should do with this pin, ground or? pls.

I remember you for a short while ago edit the I2C display so it is possible to set how many decimal we want in a Float. Work nice in real world but not in simulation. Small thing

Jorgen

[medelec35]

Hi, Jorgen,
The REF is a 2.5V bandgap ref output, so you can leave it open circuit.
I believe its function is to supply VRef of a microcontroller to make the results even more accurate (and more stable in the case of PSU ripple).
Thank for the spot with the simulation, I Will investigate and fix the issue of the decimal places issue.

Edit:
If you roll back one version, then the rounding will work again.
I will still investigate the cause.

[jgu1]

Hi again Martin!

Thank´s for reply and info. The first test I perform, was a quick test. Tomorrow I do some more test and you hear.

Jorgen

[medelec35]

Hi Jorgen,
I have fixed the issue.
If you run an update, the latest version I2C LCD should work for you.

[jgu1]

Hi Martin!
Thank´s for great job.

Display in simulation, perfect

I make some test. Look good.

Powersupply in serie with my fluke and the LTSR15

Fluke A mp. ** Ltsr. Amp.

0.00 >> >> >>>> 0,00
0,50 >> >> >> >> 0, 49
1,00 >> >>>> >> 1,21
1,5 >> >>>> >> 1,45
2,0 >> >>>> >> 1,93
2,5 >> >> >> >> 2,65
3,0 >> >>>> >> 3,13
3,5 >>>>>> >> 3,37
4,0 >> >> >> >> 3,85
4,5 >> >>>> >> 4,33
5,0 >> >> >> >> 4,81

all in all when we take into account that it is a component with such a large measuring range and that resolution is I thought it is very fine. And the small inaccuracies could be hardware as well as I can see the stability of supply voltage must be very very stable.

I have not test and compare in datasheet, but could the component also be used with ASC712?

Br Jorgen

[medelec35]

Thanks, Jorgen, that's not bad at all, considering the maximum current for the LTSR 15 is +/-48A

but could the component also be used with ASC712?

No, but the good news is Flowcode already has an ASC712 component.
Just select Component Libraries, then select the search magnifying glass and enter acs.
You can select the version from within the properties.

[jgu1]

Hi again.

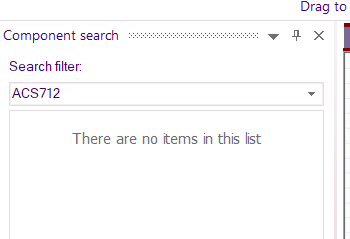

I dont think so Can´t find it, either in FC8

I think you are thinking of this thread that was apparently never made a component for ACS7xx, but would be nice

https://www.matrixtsl.com/mmforums/view ... acs#p98662

Jorgen.

[kersing]

ASC vs ACS?

[medelec35]

I dont think so Can´t find it, either in FC8

Ah, sorry you are right, it's my mistake
Leave it with me and I will get something sorted out for you.
You will have an ACS712, by end of tomorrow.

[medelec35]

ASC vs ACS?

Sorry that was a typo, ACS is correct.
I even entered acs after.
