Hi guys
I'm trying to use pwm with Atmega85 using 8Mhz internal oscillator .
The result is way off and unstable . Instead of 38khz the output is starting from 13khz and dropping slowly to 8khz or lower .
Any suggestions ?
Thank you
Attiny85 pwm wrong output
-
simisv
- Posts: 12
- http://meble-kuchenne.info.pl
- Joined: Wed Oct 19, 2022 7:54 am
- Has thanked: 2 times
- Been thanked: 1 time
Attiny85 pwm wrong output
- Attachments
-

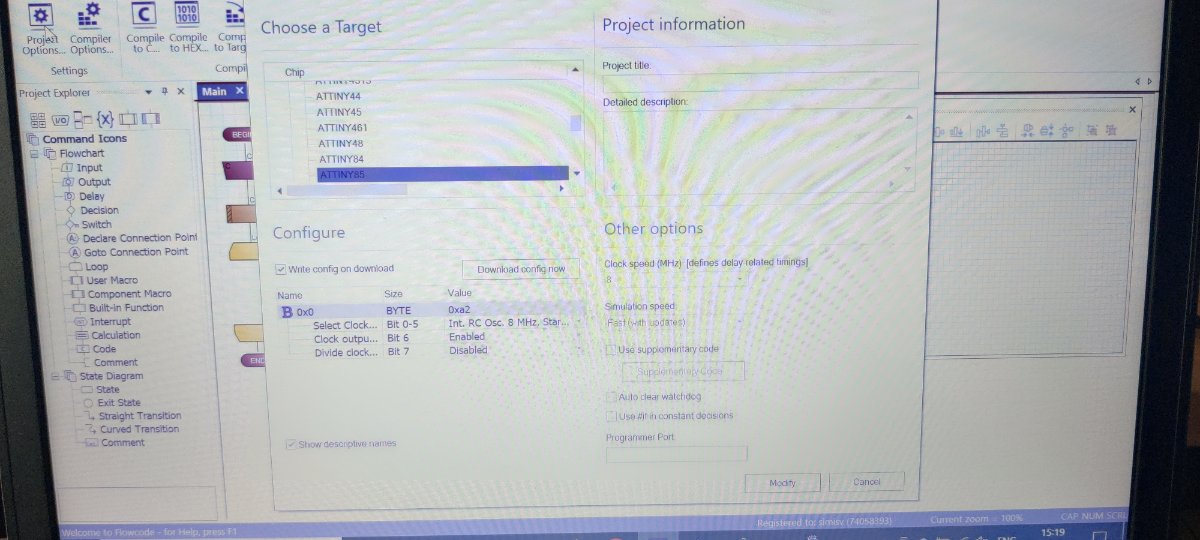

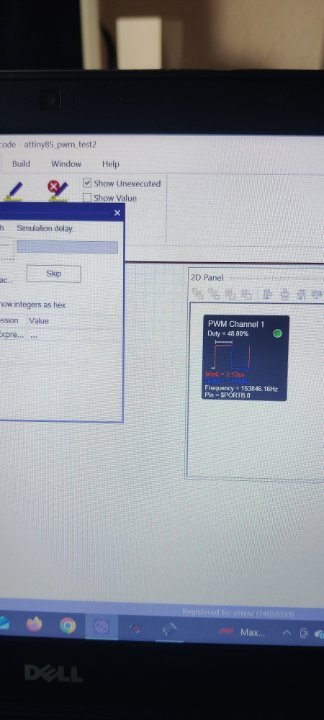

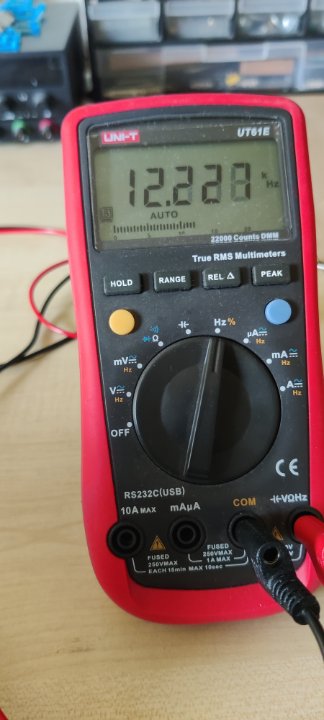

- IMG_20251004_151905.jpg (72.86 KiB) Viewed 190 times
-
- IMG_20251004_151816.jpg (57.57 KiB) Viewed 190 times
-
- IMG_20251004_151759.jpg (70.48 KiB) Viewed 190 times
Re: Attiny85 pwm wrong output
For some reason I cant attach more then 3 pictures .
- Attachments
-

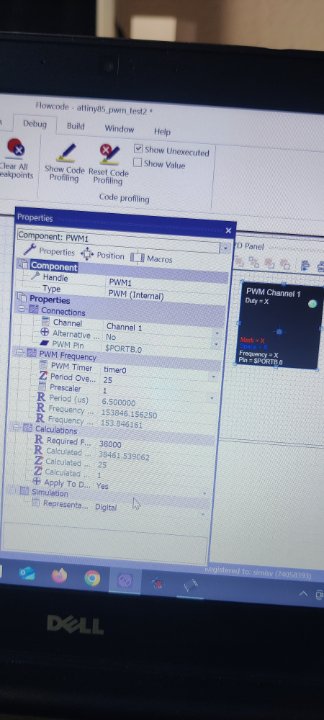

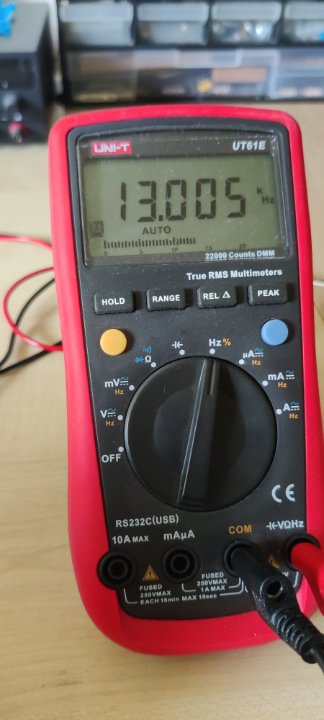

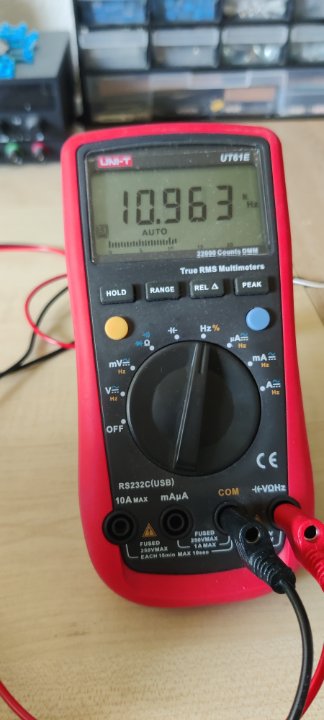

- IMG_20251004_151957.jpg (133.23 KiB) Viewed 189 times
-
- IMG_20251004_151937.jpg (72.63 KiB) Viewed 189 times
-
- IMG_20251004_151917.jpg (73.25 KiB) Viewed 189 times
Re: Attiny85 pwm wrong output
And the flowcode 10 file .
