Hi Ben

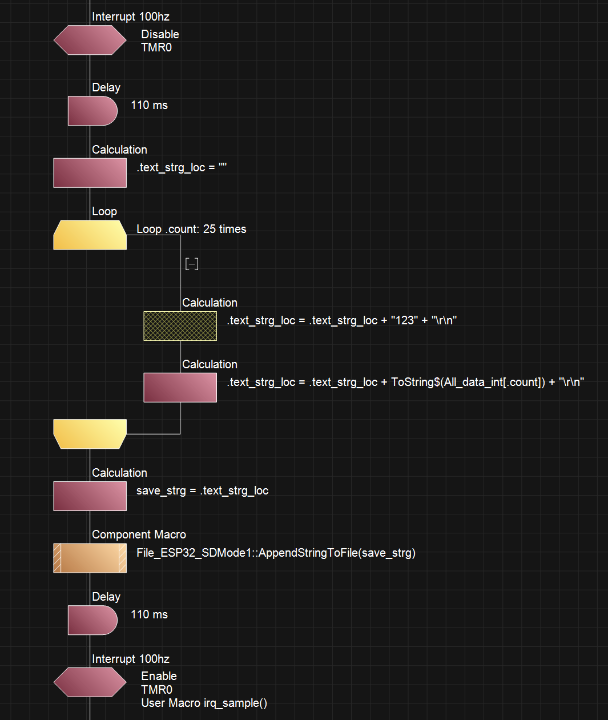

It didn't help, even when I briefly disabled the IRQ.
But 25 short strings work fine.

Hi Ben

You're right...
long string are already ok.
I made a lot of test with the string write to the sd-card (no interrupt)
The test are here:
Sd_Card_MD_text_Copy.fcm
And every test is working fine. PERFECT!


But if I sample and save data, there is a problem with the ...

Hi Ben

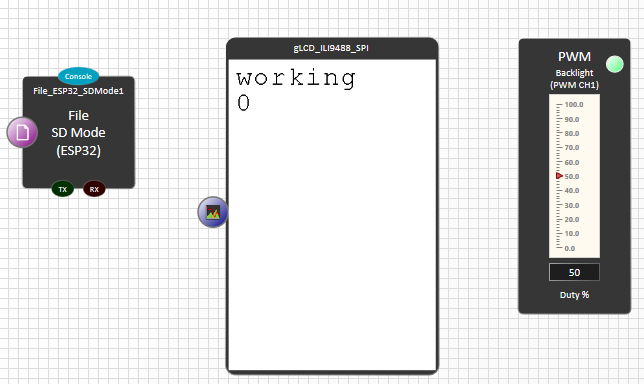

Right now, the SD card is working very well with the ESP32-S3 and FC11.

But...

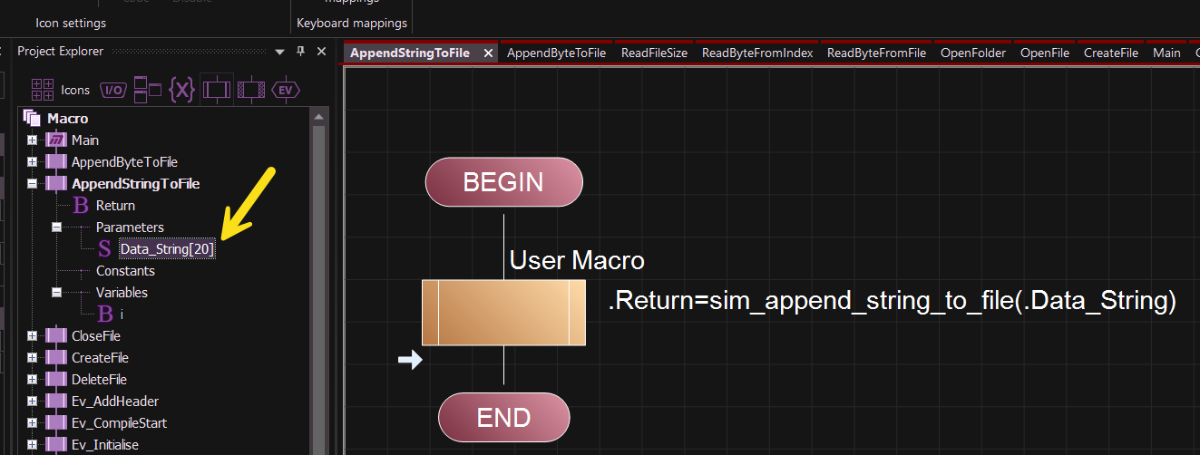

Append a string[20] isn't practical, to save a text line.

For the component File (ESP32 SDMode) is a longer string possible?

Maybe 150, 200, or 512—would be better.

Hi Ben

Thank you.

I think I can expand on that to read from and write to the few 8-bit registers on the MCP356X1
I also don't need multi-read or multi-write functionality.

as with the I2C components

Hi Ben

It would be fine with me if the send command worked both ways.
Then I can do everything.

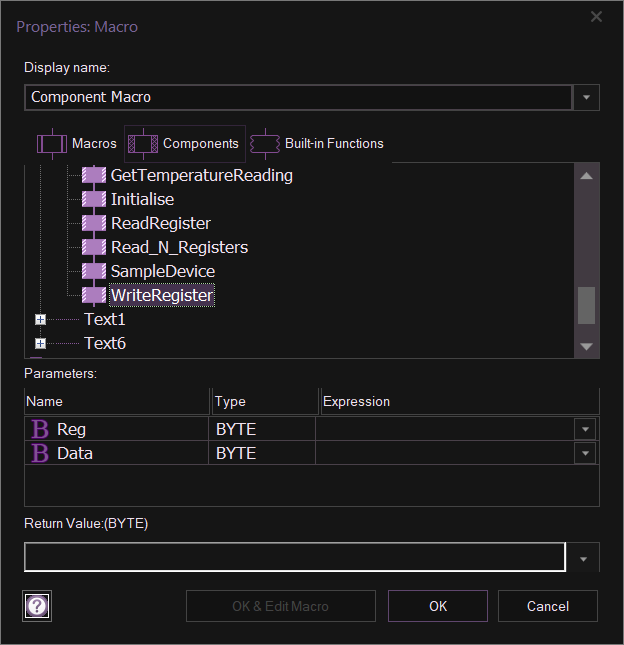

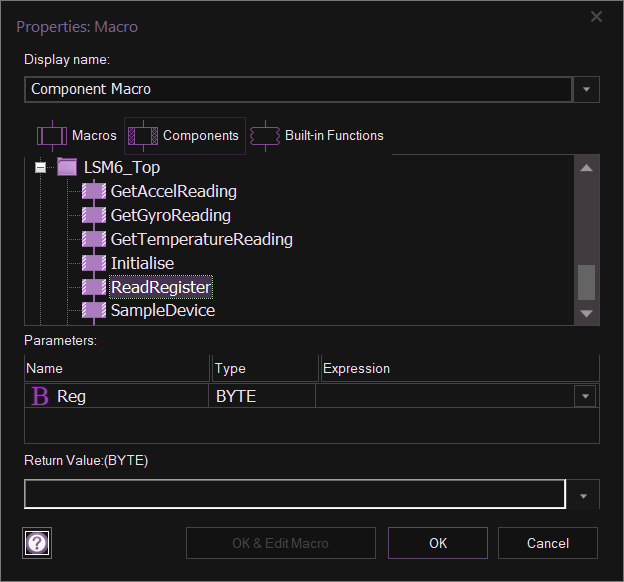

Two questions about the component.

In the finished component, there is a “Data” parameter, but not in the component I downloaded.

Why is the return value BOOL and not BYTE ...

Hi Ben

Sorry, that was my fault. I didn't notice it.

doubleclick on the left side propertis open the menue.
Not working in variable part

Wrong place to click... Menue:

Hi Ben

Very good
I already understand how to view, edit, and use the components.
I have a question about the properties in the components.
Do I have to view and edit them with a text editor, or is there another way?



<property name='AMCLK Prescaler' target='Prescaler' typeid='16' hidden='0 ...

Hi Ben

The MCP356x1 is a nice 24Bit Ad converter.
The AD converter is working perfect with FC11

I recorded two signals using different oversampling settings. At 32, the noise is higher, but there are no steps in the signal.
with 512 unfortunately, it's reversed but not better.

It would be ...

Hi Steve

In the simulation Property.GetValue the value it shows is 004
I think that's correct.

But in the compiled version running in the ESP32 the string it's empty.

Hi Steve

It's useful to save a device's configuration to an SD card Embedded.
That way, you have an overview of the exact parameters or properties used in that specific firmware version.

With a *.MD file, you can easily do this with graphics.

(An MD file is a Markdown document (.md) that stores ...
