AppDeveloper How to use CSV read/write

[stefan.erni]

Hi Ben

Writing a file works perfectly, if I use delay

reading doesn't go so well

I don't know exactly how to use CSV read/write.
Writing a CSV file works well with the next row command.
But when reading the CSV file, I don't know if I need the command.

Sometimes when creating and writing the file, I end up with an empty file.
If I already have an empty file, then it works fine when I start the program a second time.
I don't know where I need to wait.

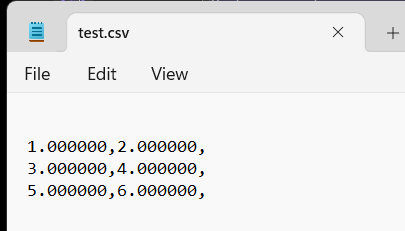

Sometimes I still get a lot of 000000 if I open it with notepad.

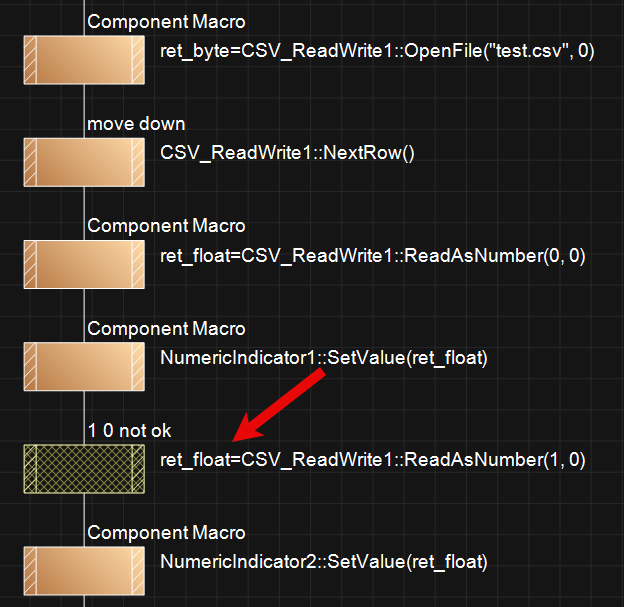

One command gets stuck readAsNumber(1,0) but the others work.


Testprogram:

post_csv1.fcpcd

(44.24 KiB) Downloaded 73 times

[stefan.erni]

Hi Ben

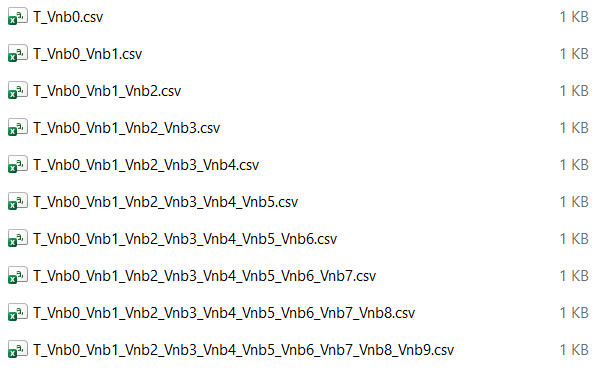

I have written a file that generate 10 files and some with extra long filename.

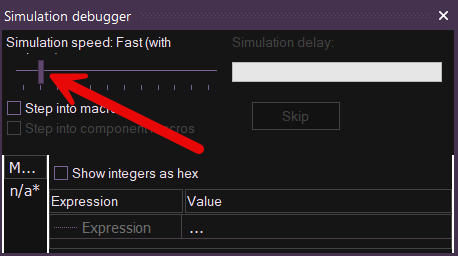

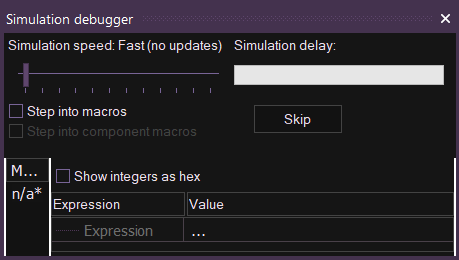

A problem is with the simulation speed.
Can I set it always to full speed?
So I'll start testing “reading CSV into an array.”
The file I need to read has about 12,000 lines.

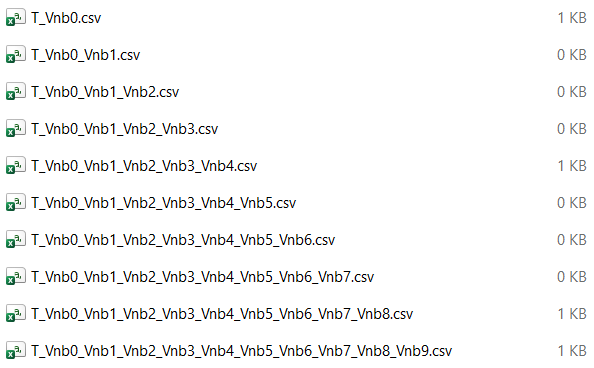

If this is on second place and the file is small, there is a problem



If this is on first place


it's perfect without a delay and short or long files are ok

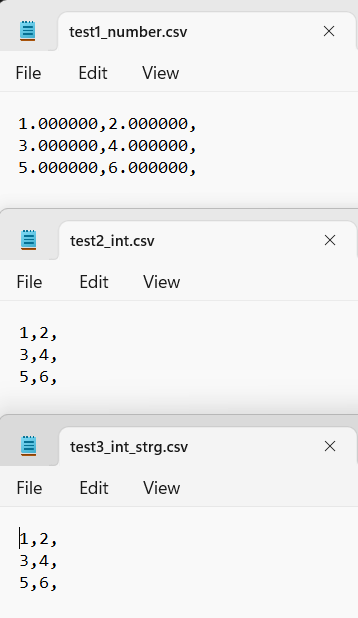

With the lot of zeros it's just write number a problem, write int and write strg is ok.
I think it's because of write float (and not a problem).


Testprogram:

post_csv_write2.fcpcd

(15.61 KiB) Downloaded 49 times

[stefan.erni]

Hi Ben

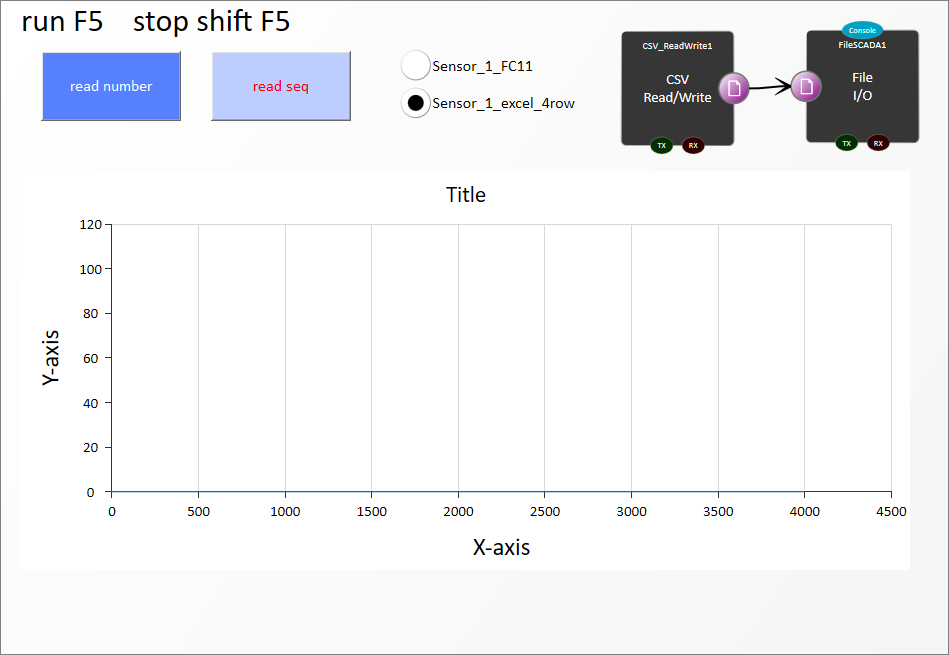

I wrote a program to read a csv file generate from an FC11 App.

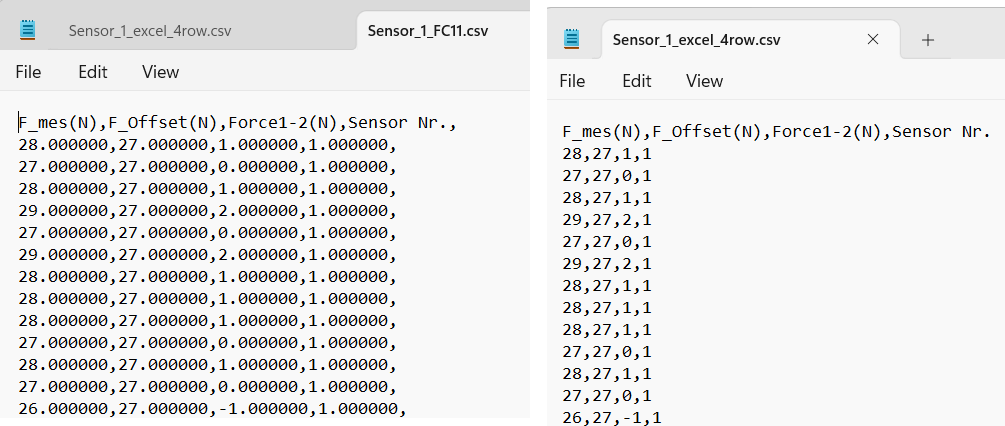

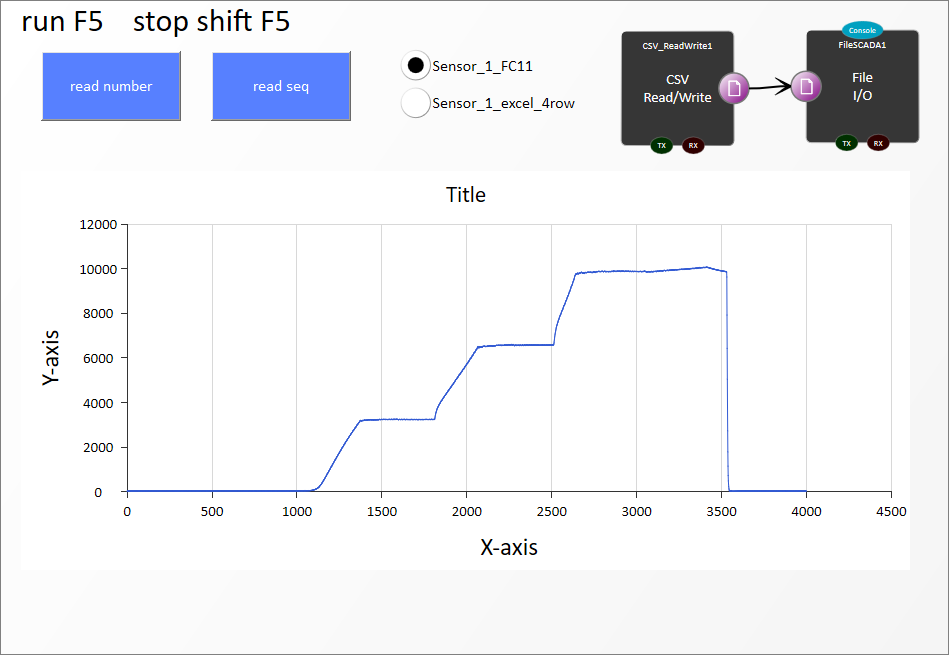

Sensor_1_FC11.csv is the original file

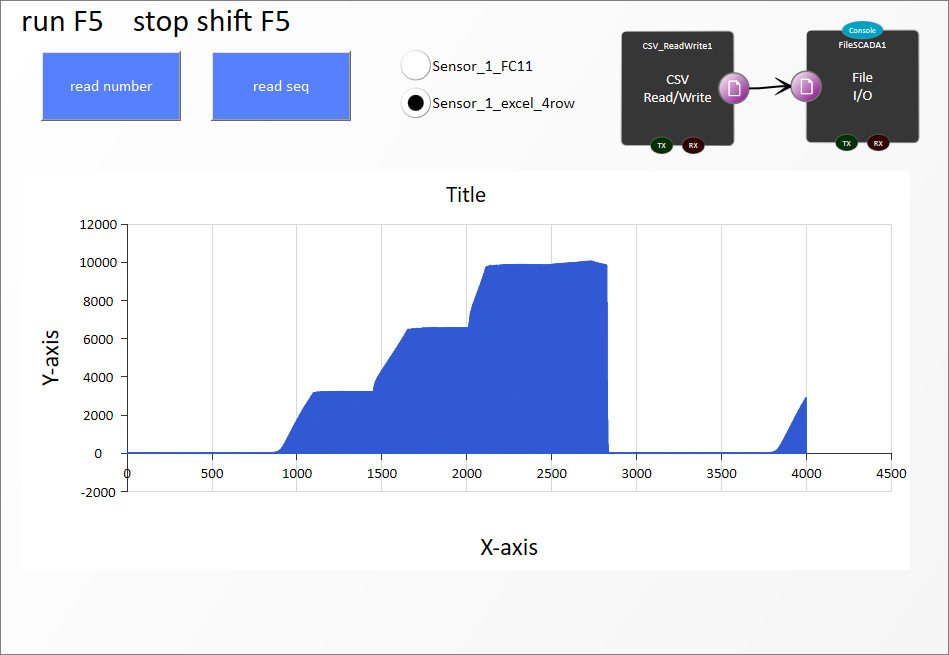

Senser_1_excel_4row.csv is open and save in excel as csv file.

the comma at the end is gone after save.

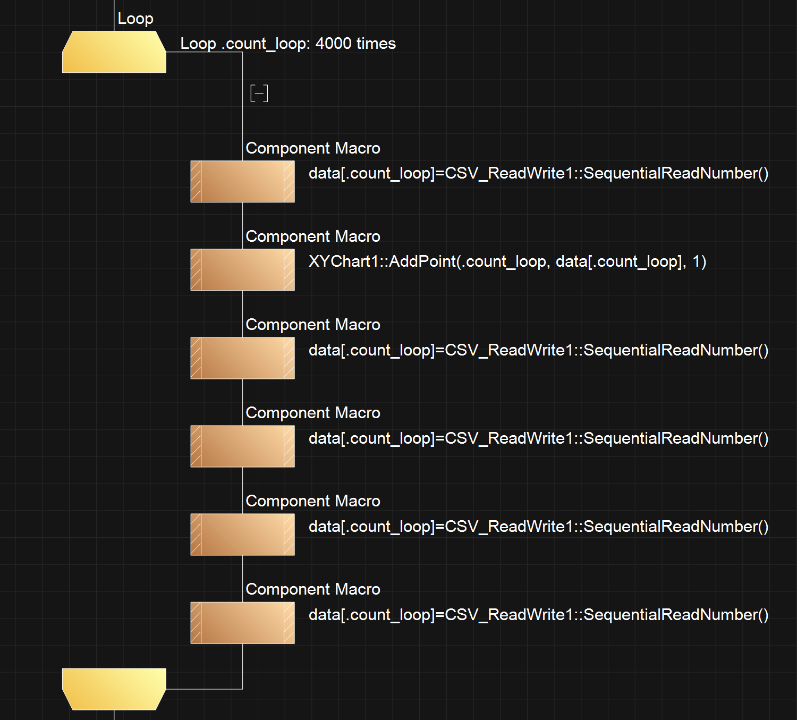

read seq ist working if I add some read but this does not match anymore after excel




read number is not working (anymore)


program

post_csv2_read.fcpcd

(29.91 KiB) Downloaded 49 times

csv file:

Sensor_1_FC11.csv

(538.78 KiB) Downloaded 44 times

Sensor_1_excel_4row.csv

(170.18 KiB) Downloaded 48 times
